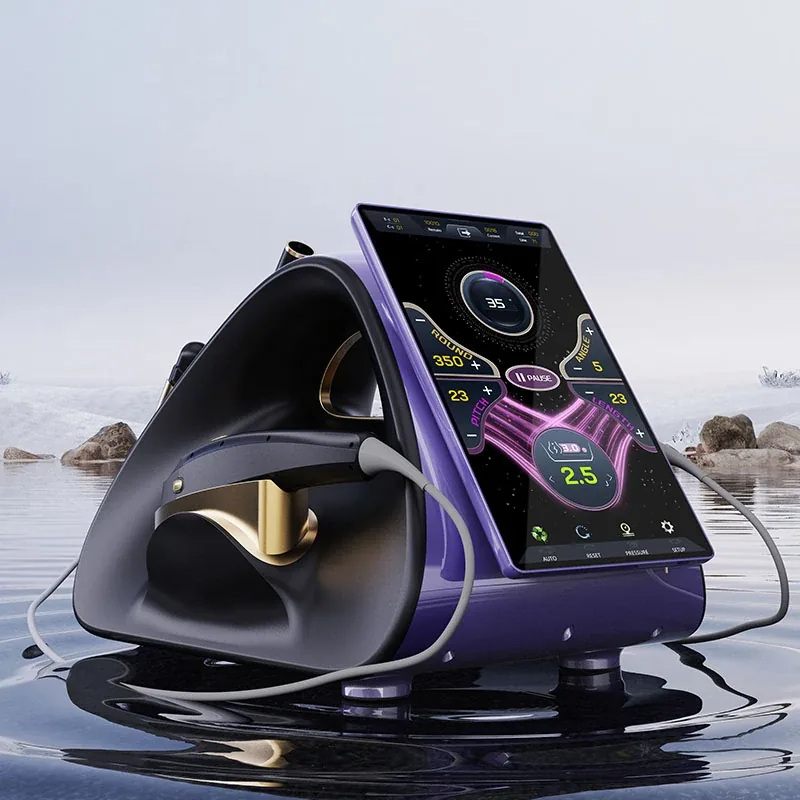

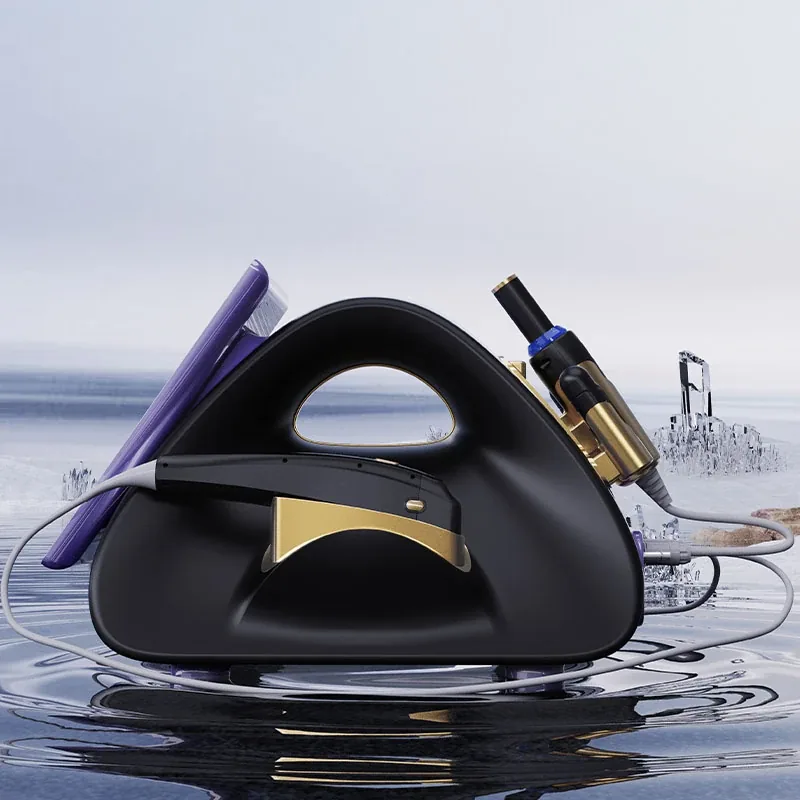

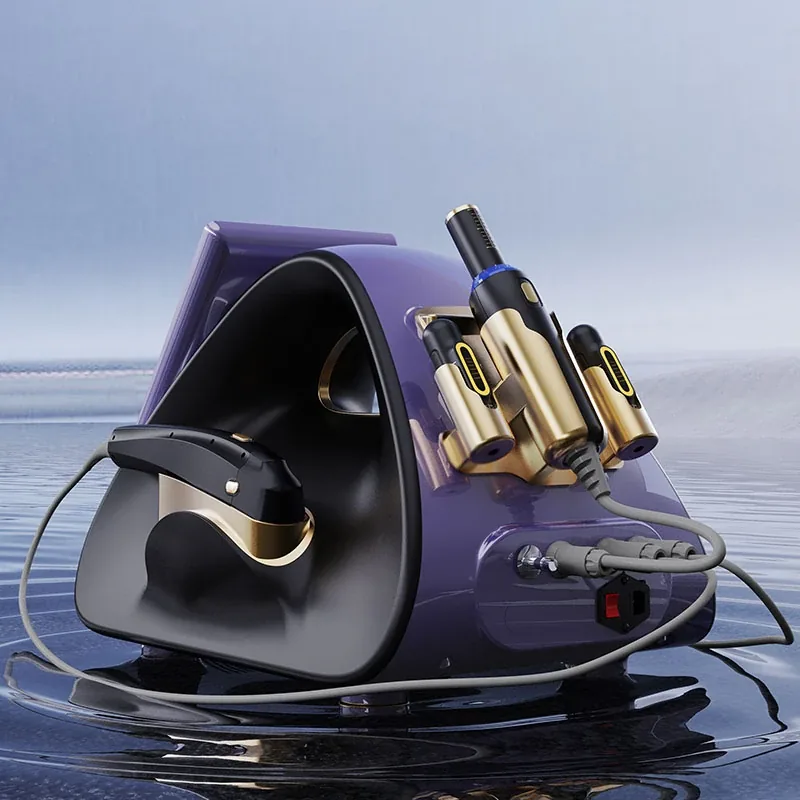

12D HIFU Machine
The FotroHIFU 12D HIFU Machine is a professional platform for clinics, medical spas, and distributors that want to offer eye, body, and intimate treatments alongside facial HIFU. Superpulse and MP delivery can shorten treatment times and help teams serve more clients each day. Partners can customize the system configuration and branding for their market and business, with one-to-one training and ongoing technical support.
- Two Superpulse HIFU handpieces for face, eye, and body workflows
- Documented face and body depths from 1.5 to 16.0 mm
- Normal and MP firing patterns with Single and Repeat output
- Dedicated private handle with 3.0 and 4.5 mm depth options
- Airbag pressure detection listed in the current machine specification

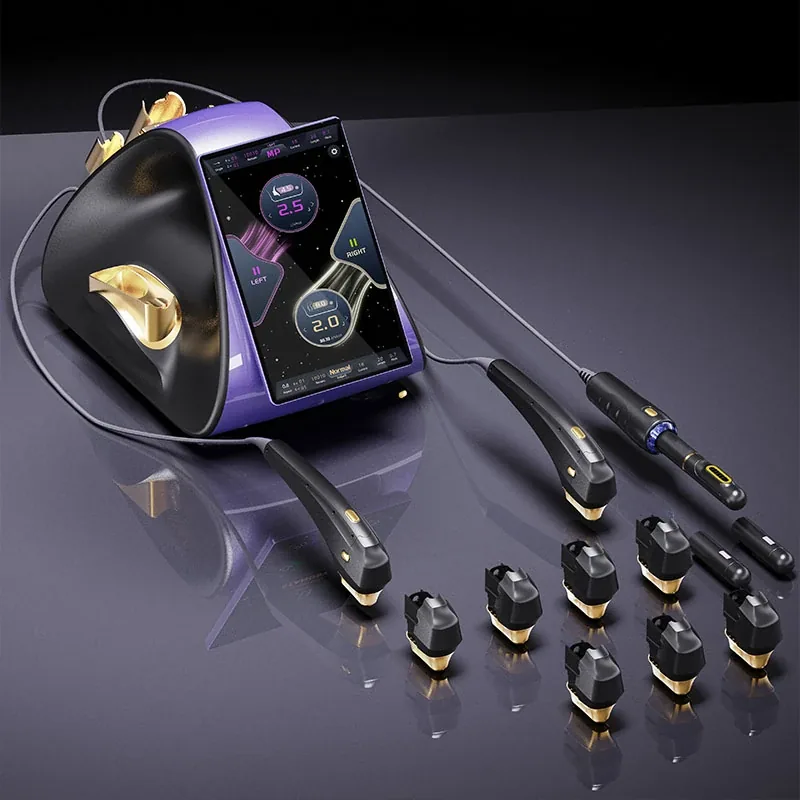

12D HIFU Machine Handpiece Guide
Three purpose-built handpieces support face, eye, body, and intimate treatment workflows.

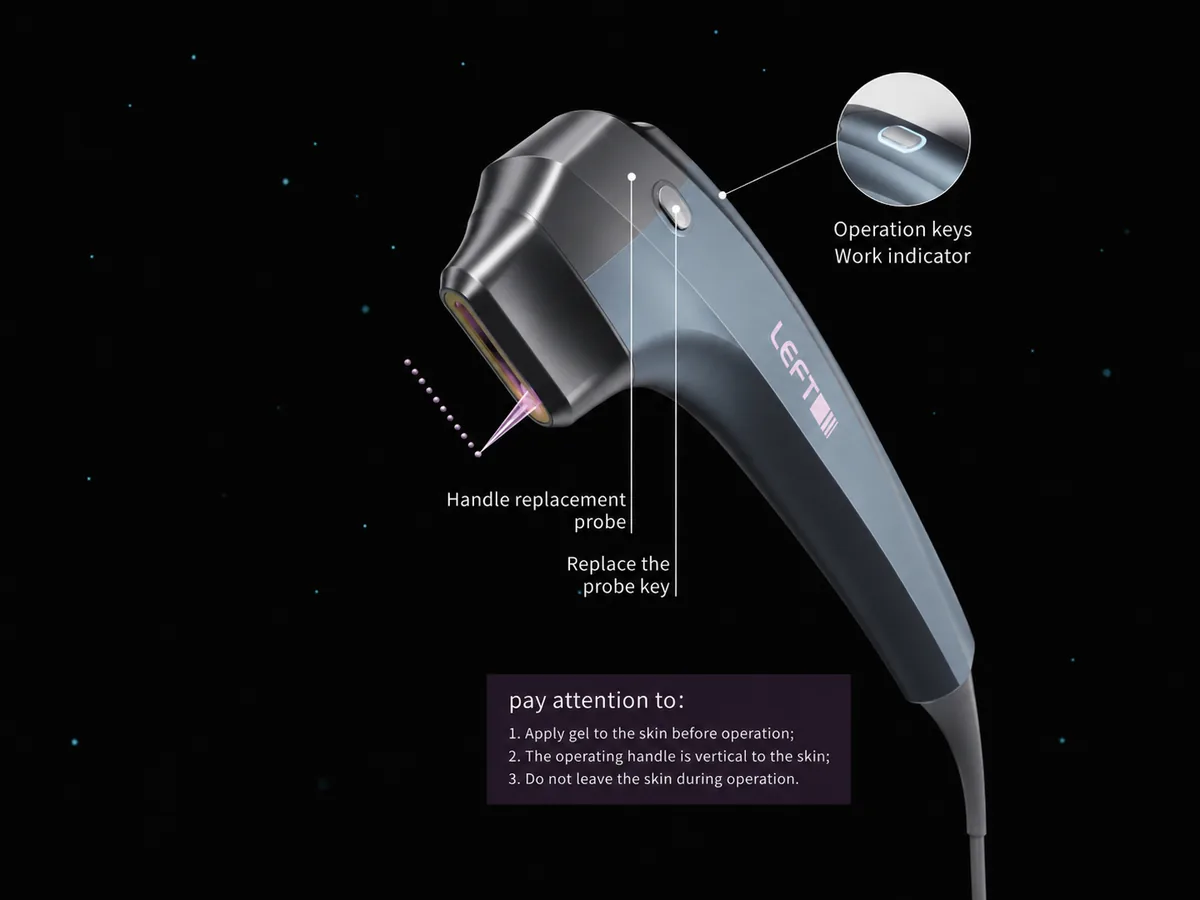

LEFT Superpulse handpiece for face and neck
This primary facial handpiece combines multiple treatment depths with flexible output controls, helping operators adapt protocols across the face, jawline, and neck.
- 1.5 to 6.0 mm depths support tailored face, jawline, and neck protocols.
- Normal/MP firing patterns and Single/Repeat output controls provide flexible delivery.
- One facial handpiece simplifies training and expands service planning.

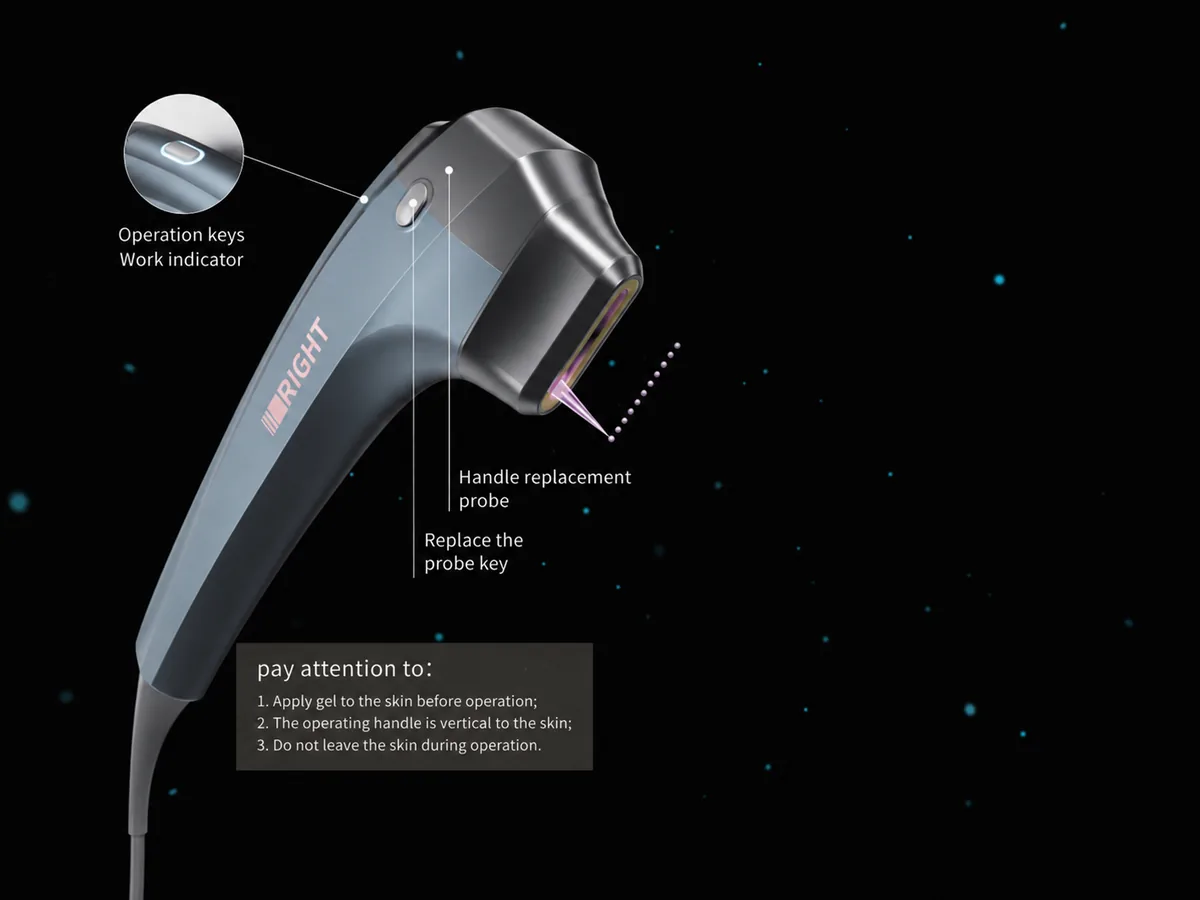

RIGHT Superpulse handpiece for eye and body
Combining eye and body cartridges in one handpiece extends the system from smaller treatment zones to broader body applications without requiring a separate HIFU platform.
- A dedicated eye cartridge supports controlled treatment of smaller areas.
- 8.0 to 16.0 mm depths cover the abdomen, arms, thighs, and back.
- Wider coverage improves equipment use and expands the clinic’s service menu.

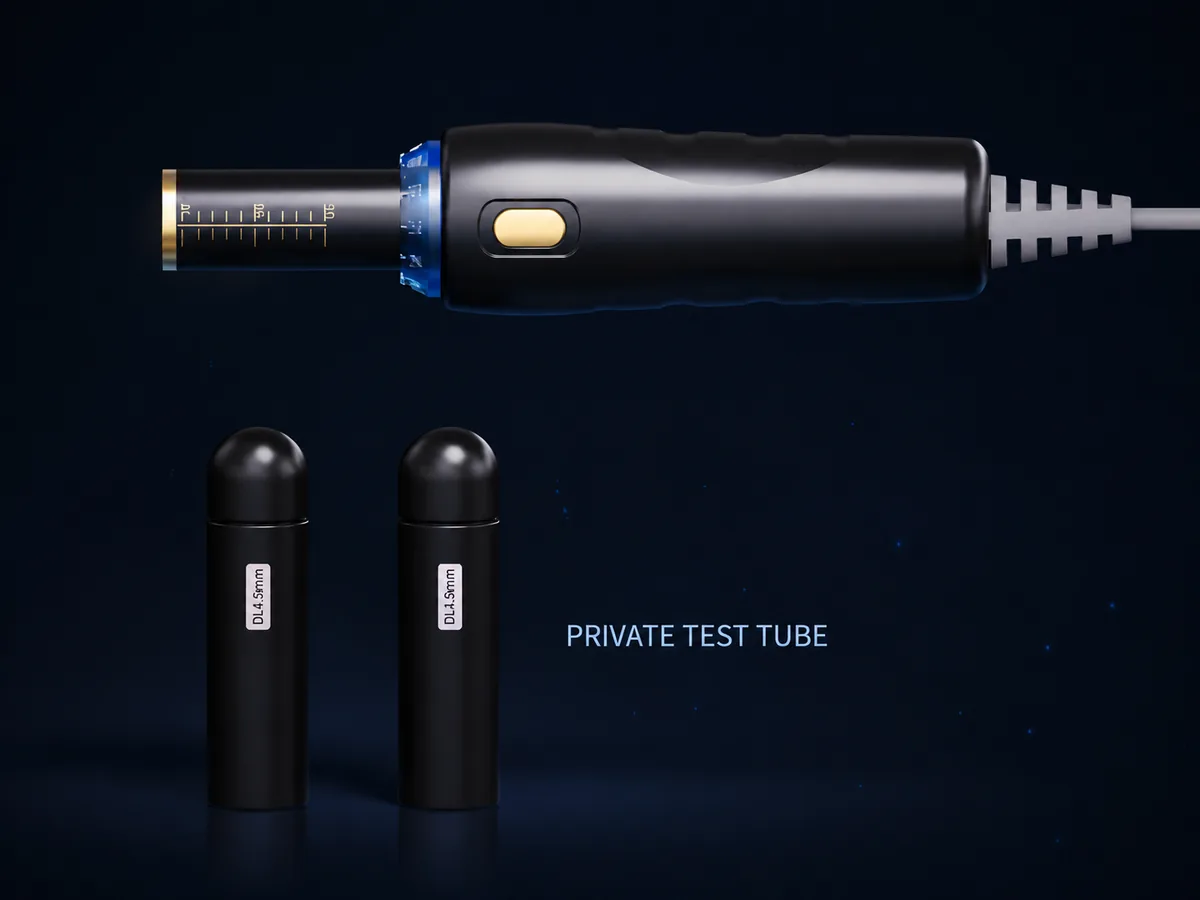

Dedicated intimate handle
Designed for qualified professional use where intimate treatments are permitted, this separate handle provides a clearer and more organized workflow for specialized services.
- 3.0 and 4.5 mm options support protocol-based depth selection.
- A dedicated attachment keeps intimate treatment workflows clearly separated.
- Clinics can add a specialized service without another treatment platform.
Superpulse and MP technology
Superpulse output pairs with separate Single/Repeat movement and Normal/MP firing controls.
Single and Repeat Output
Single moves the internal mechanism in one direction, while Repeat drives it forward and back at adjustable intervals. Operators can choose between controlled one-way lines and smoother two-way area coverage.
- Single mode supports controlled, unidirectional treatment lines.
- Repeat provides two-way output at 0.1–1.0-second intervals.
- Shared controls across both handpieces simplify operator training.
Normal and MP Firing Patterns
Normal provides a focused point pattern for smaller or sensitive zones, while MP spreads energy through a denser multi-point matrix. Operators can switch patterns according to the treatment area and selected protocol.
- Normal delivers 17 coagulation points per round for focused treatment.
- MP distributes 417 points per engine cycle across wider areas.
- Selectable patterns extend flexibility across face and body protocols.

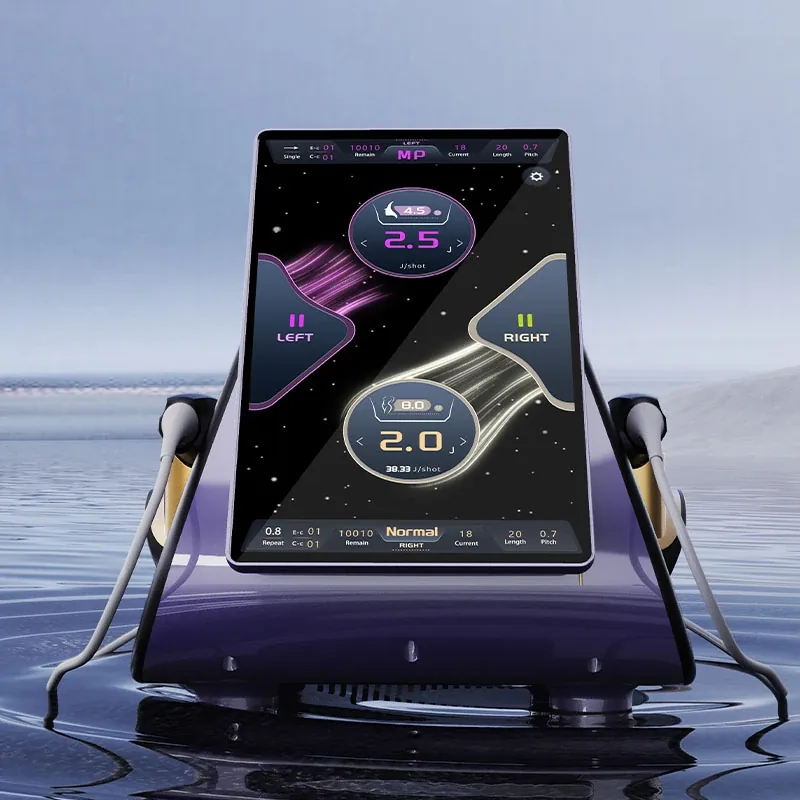

On-Screen Controls and Presets
The 13.3-inch touchscreen centralises LEFT and RIGHT handpiece controls, energy, line length, pitch, travel direction, and firing pattern. Presets and usage records help standardise daily operation.
- Separate LEFT and RIGHT controls keep dual-handpiece operation clear.
- M1–M3 presets reduce repeated setup for frequently used protocols.
- Shot records help clinics monitor cartridge use and manage inventory.
12D HIFU Machine applications
The three-handpiece configuration lets a clinic plan services by treatment area and documented probe depth. Every application requires trained operation, client assessment, and settings selected according to the approved protocol.
Face and neck
The LEFT Superpulse handpiece supports contour-focused and skin-firming workflows across the face and neck. Its 1.5, 3.0, 4.5, and 6.0 mm probes give trained operators multiple depth options when planning a service.
Eye area
The dedicated 2.0 mm, 5.5 MHz eye option supports planning for smaller areas around the eyes. Work in this area requires careful assessment and protocol control because local anatomy and client suitability vary.
Body areas
The RIGHT Superpulse handpiece uses documented 8.0, 13.0, and 16.0 mm body probes at 2.0 MHz. Listed treatment areas include the abdomen, arms, thighs, and back. The final probe and settings should follow training and the approved protocol.
Intimate services
The private handle supports professional intimate workflows using 3.0 and 4.5 mm options. Service availability depends on local regulations, operator qualifications, client assessment, and the documentation supplied for the model.
12D HIFU machine technical specifications
- Product model
- 12D HIFU Machine
- Handpiece configuration
- LEFT Superpulse; RIGHT Superpulse; private handle
- Display
- 13.3-inch HD touchscreen
- HIFU operating controls
- Single / Repeat output; Normal / MP firing patterns
- Documented shot distribution
- Normal: 17 points per round; MP: 417 points per engine cycle
- LEFT probe options
- 1.5 mm at 5.5 MHz; 3.0 mm at 5.5 MHz; 4.5 mm at 4.0 MHz; 6.0 mm at 4.0 MHz
- RIGHT probe options
- Eye 2.0 mm at 5.5 MHz; body 8.0 / 13.0 / 16.0 mm at 2.0 MHz
- Intimate depth options
- 3.0 / 4.5 mm
- Energy adjustment
- 0.1 to 3.0 J
- Repeat interval
- 0.1 to 1.0 seconds
- Power supply
- AC 110 V / AC 220 V
- Rated power
- 1280 W
- Net instrument weight
- 7 kg
- Gross packed weight
- 20 kg
- Package dimensions
- 56.5 × 49.5 × 59 cm
Manufacturer quality, training, and OEM support
Quality review, operator onboarding, customization, and after-sales planning stay with one manufacturer support team.
ISO 13485 quality system
Fotromed reports an ISO 13485 quality-system audit update. Confirm the certificate scope for the selected 12D configuration.
Pre-shipment quality checks
The published process includes functional review and pre-shipment photos or video. Request the inspection record for the selected unit.
Live one-to-one training
Live video training covers machine operation, probe selection, and protocol guidance. Confirm the schedule and language before shipment.
OEM and ODM options
Logo, product name, interface, color, packaging, and project-level development can be discussed before production.
OEM MOQ from one unit
General OEM and private-label work can start from one unit. Final scope depends on the selected platform and requested changes.
Warranty and spare parts
Confirm the warranty terms, troubleshooting route, and spare-parts scope in the final order agreement for this model.
Certified Quality for Global Markets
FAQ
What does 12D mean on a HIFU machine?
The 12D label is a supplier-defined product name, not a universal technical standard. Depending on the supplier, it may refer to a handpiece design, product generation, line concept, or firing pattern. Compare the actual handpieces, cartridges, depths, frequencies, controls, training, and support instead of judging the machine by its D number alone.
Which treatment depths does this 12D HIFU machine support?
The LEFT handpiece lists 1.5, 3.0, 4.5, and 6.0 mm. The RIGHT handpiece lists a 2.0 mm eye option and 8.0, 13.0, and 16.0 mm body options. The private handle lists 3.0 and 4.5 mm. Ask the sales team to identify every included probe in the final quotation.
What is the difference between Normal and MP shot delivery?
Normal mode lists 17 coagulation points per round, while MP mode lists 417 points per engine cycle and is identified as a multi-point line pattern. These figures describe how the machine distributes points. Mode selection should follow operator training and the approved protocol, and the point count does not guarantee a specific result.
Can the machine support face, body, and intimate services?
Yes. The documented three-handpiece configuration covers face and neck, the eye area and selected body areas, and permitted intimate workflows. All applications require trained operators, client assessment, approved protocols, and compliance with local rules.
Is training available for this 12D HIFU machine?
Yes. FotroHIFU lists live one-to-one video training covering device operation, probe selection, and treatment protocol guidance. Confirm the training scope, schedule, language, and support contact in the written quotation before shipment.
