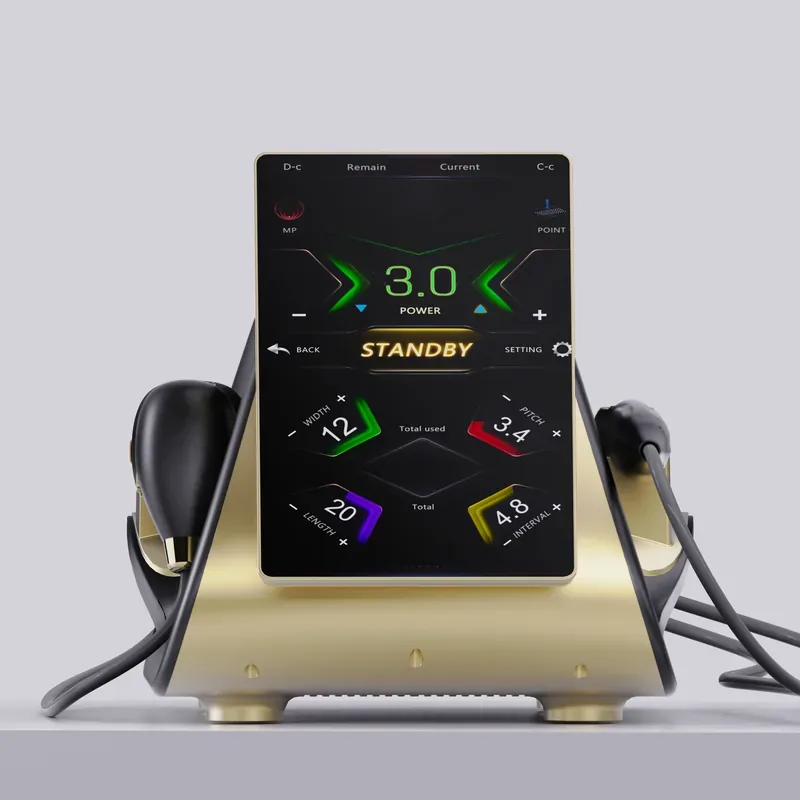

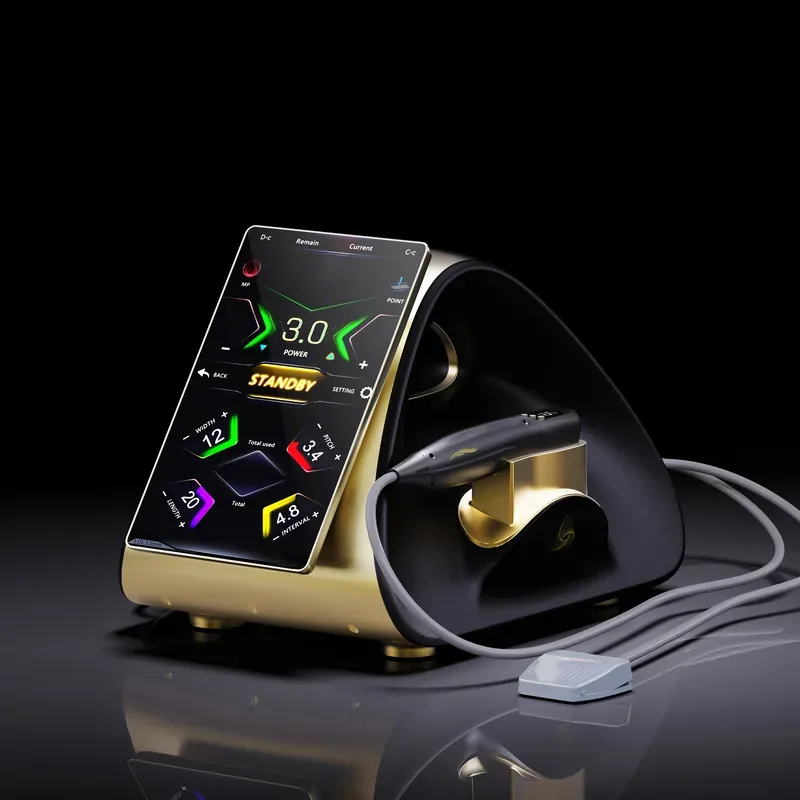

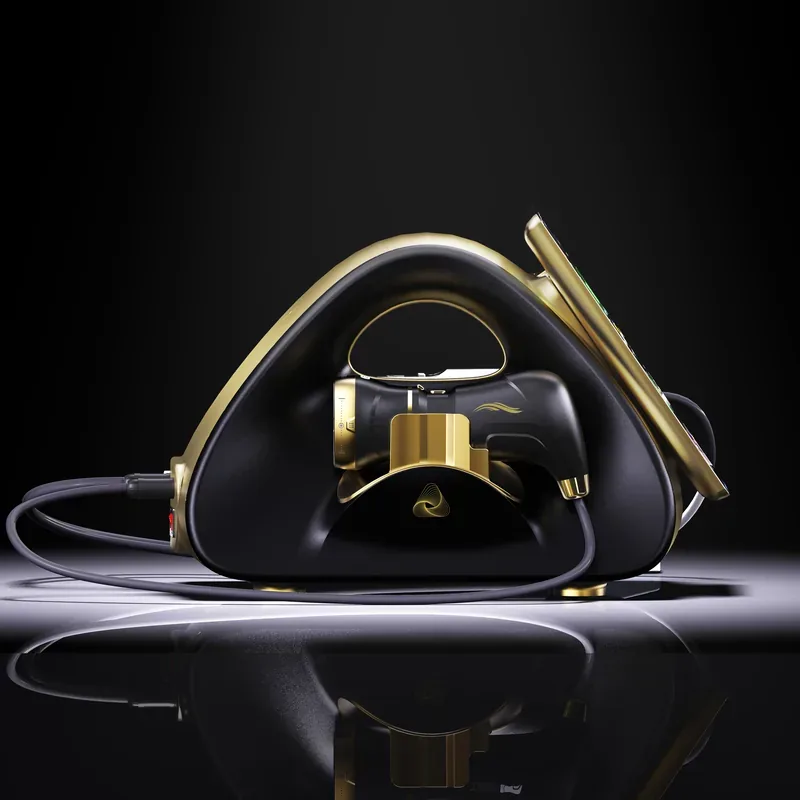

22D HIFU Machine
Get a FotroHIFU 22D HIFU machine for clinics, aesthetic chains, and distributors adding facial lifting and body contouring to their service menu. The system pairs a 13D Multi-Dim handpiece with an 18D RS handpiece that combines focused ultrasound and 6.78 MHz RF. Standard and optional probes cover documented depths from 1.5 to 18.0 mm. A 13.3-inch screen, four output paths, live one-to-one video training, and direct manufacturer support are part of the purchase workflow.
- 13D Multi-Dim handpiece for face and neck workflows
- 18D RS handpiece with focused ultrasound and 6.78 MHz RF
- Standard and optional probe depths from 1.5 to 18.0 mm
- Point and MP modes, plus Circle and AI Spiral on the 18D RS handle
- 13.3-inch HD screen with dual brushless-motor control

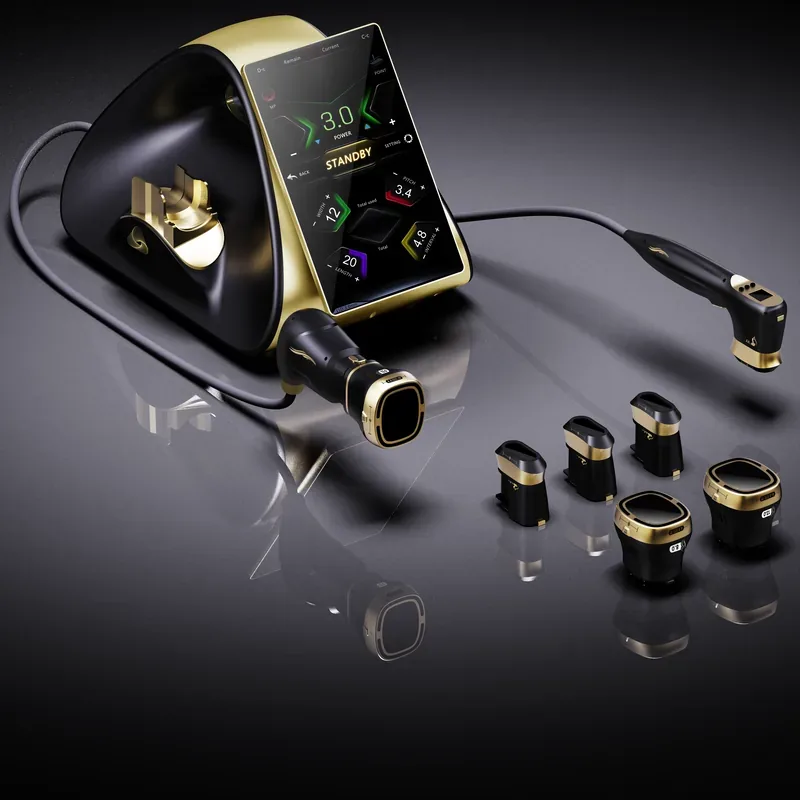

Two Specialized Handpieces for Expanded Treatment Capabilities
Two specialized handpieces allow 22D-MAX to deliver more targeted facial and body treatments with one platform.

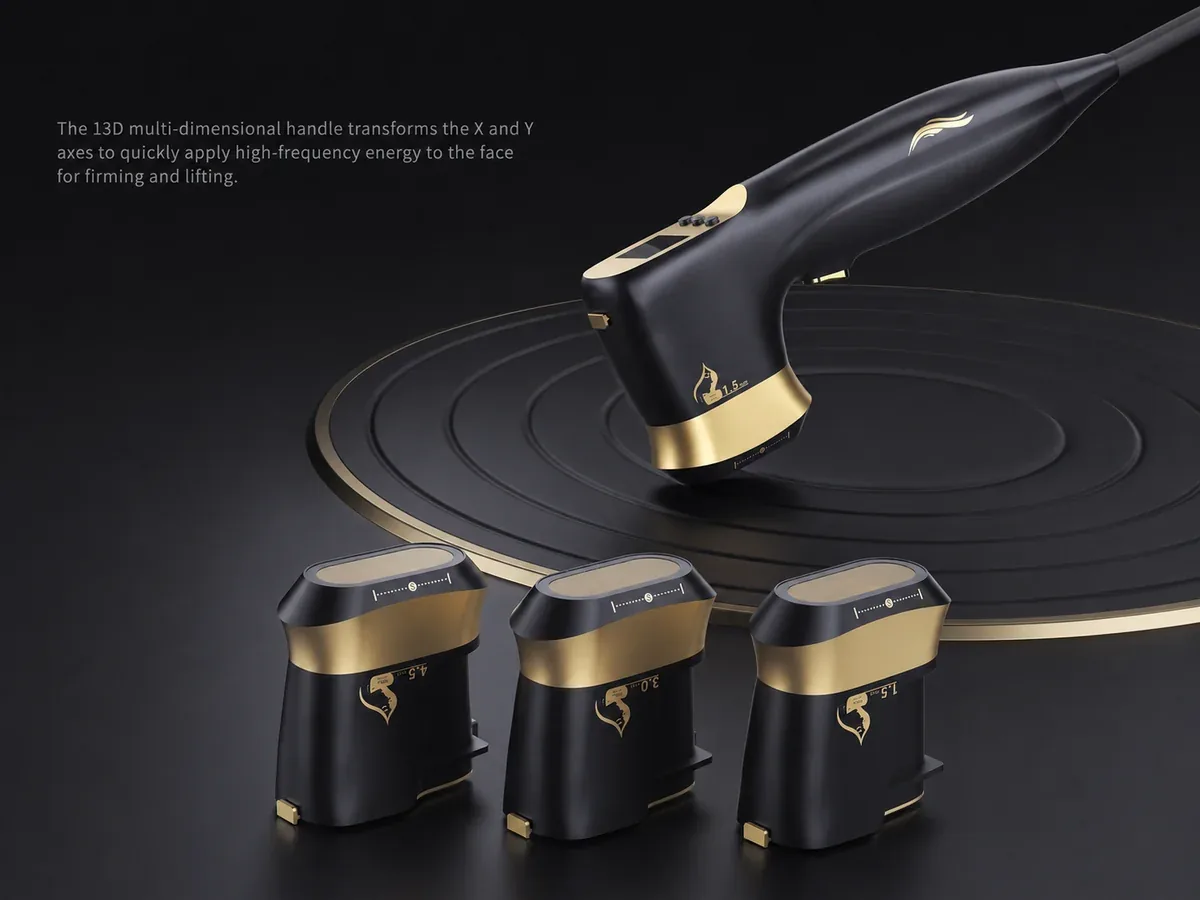

13D Multi-Dim Handpiece
The 13D Multi-Dim handpiece is designed for the face, jawline, and neck, where controlled placement matters across smaller and curved areas. Its dedicated format helps operators keep face-focused services separate from larger body workflows.
- Dedicated to face, jawline, and neck workflows.
- Suited to smaller areas and facial contours.
- Supports a focused facial lifting and firming service menu.

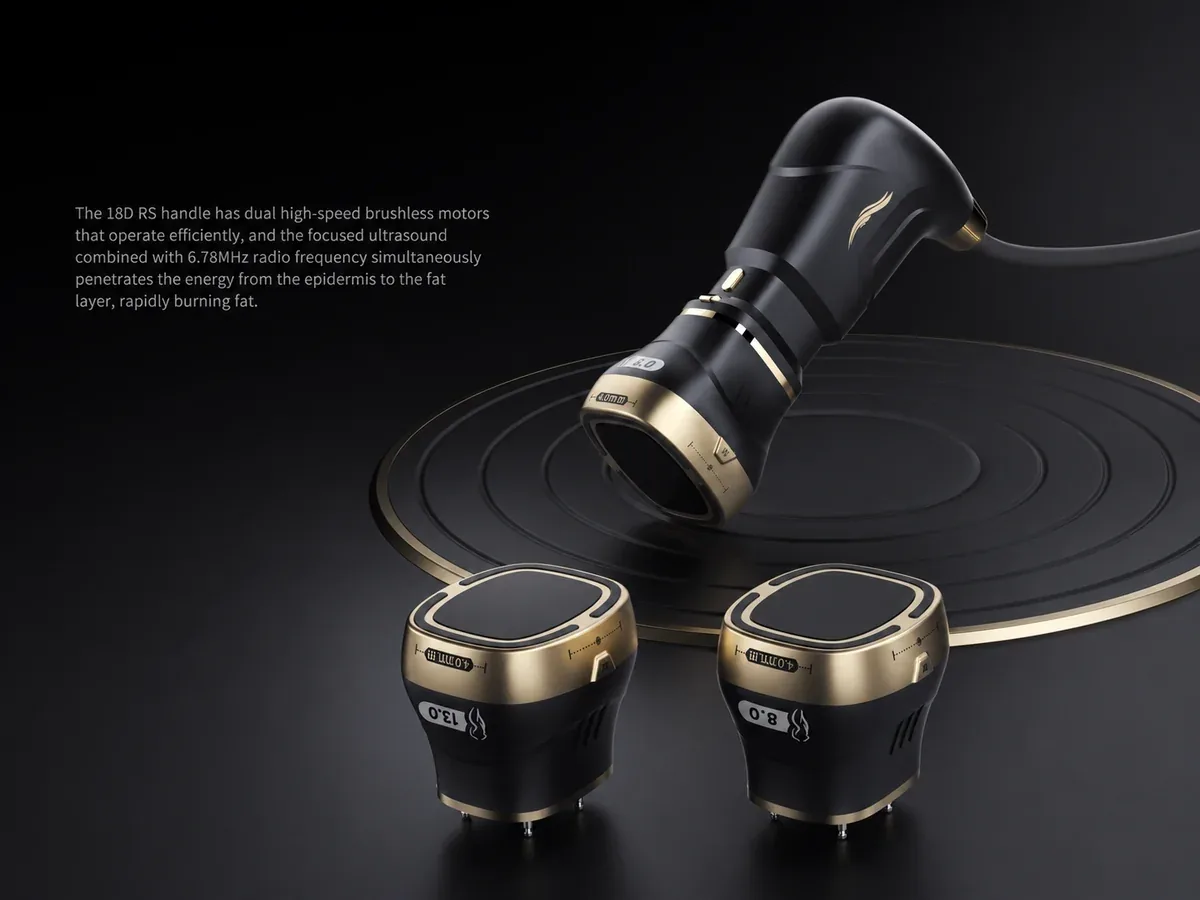

18D RS Multi-Dim Handpiece
The 18D RS Multi-Dim handpiece is built for larger body areas. It combines focused ultrasound with 6.78 MHz RF in one body-focused handpiece, helping clinics add body services without moving to a separate platform.
- Designed for larger body treatment areas.
- Combines focused ultrasound and 6.78 MHz RF.
- Extends the service menu beyond face and neck treatments.
Point, MP, Circle, and AI Spiral output modes
Each mode changes the path used to place ultrasound energy across a selected area. Point works one position at a time, MP builds a straight line, and the 18D RS adds circular and spiral paths.
Point mode
Point mode places ultrasound energy at one selected position. It gives operators direct control when they want to work through an area one placement at a time.
Available on both handpieces.
MP mode
MP stands for multi-point. It arranges multiple ultrasound points in a straight line, so the operator can cover a planned strip with fewer individual placement changes.
Available on both handpieces.
Circle mode
Circle mode follows a circular coverage path. It gives operators an alternative to point-by-point or straight-line placement for wider or curved areas.
Available on the 18D RS handpiece.
AI Spiral mode
AI Spiral follows a spiral path on the 18D RS, which also combines focused ultrasound with 6.78 MHz RF.
Available on the 18D RS handpiece.
Face and body treatment areas
The 22D-MAX covers selected areas of the face, neck, arms, midsection, and lower body. Area selection should follow client assessment, operator training, and the approved treatment protocol.
Face and neck areas
Face-focused applications cover broad contours and smaller zones across the face and neck.
- Forehead
- Around the eyes
- Cheeks
- Nasolabial folds
- Jawline
- Double chin
- Neck
Body areas
Body applications cover the upper arms, midsection, thighs, and buttocks.
- Upper arms
- Abdomen
- Waist
- Thighs
- Buttocks
22D-MAX specifications
Use these figures to plan treatment-room space, machine handling, and shipping before ordering.
Drive system
- Motor torque
- 30 mNm
- Motor speed
- Over 1,600 RPM / up to 20,000 Hz
Machine size
- Dimensions
- 30 × 52 × 37 cm
- Net weight
- 7.4 kg
Shipping package
- Airbox dimensions
- 45 × 53 × 61 cm
- Packed weight
- 21.5 kg
Training, OEM, and after-sales support
FotroHIFU provides live training for operators and supports OEM preparation before production. Buyers also have a direct contact for setup, troubleshooting, and maintenance questions.
Live video training
Live one-to-one video training covers machine operation, handpiece and probe selection, and protocol guidance. Confirm the schedule, language, and team questions before shipment.
OEM brand preparation
Discuss OEM and private-label requirements before production. Confirm the logo, placement, colors, packaging, documentation, and order quantity in writing.
Direct after-sales contact
Buyers can contact the manufacturer directly about setup, troubleshooting, and maintenance. Include the model, serial number, photos or video, and a clear issue description in the support request.
Certified Quality for Global Markets
FAQ
What does 22D mean on a HIFU machine?
On this FotroHIFU model, 22D identifies the combined 13D facial and 18D RS body handpiece system. The platform brings focused ultrasound, 6.78 MHz RF, probe depths from 1.5 to 18.0 mm, and four output paths into one console.
Which probe depths does this 22D HIFU machine support?
The 13D standard set includes 1.5, 3.0, and 4.5 mm, with optional probes from 6.0 to 18.0 mm. The 18D RS standard set includes 8.0 and 13.0 mm, with optional 6.0, 10.0, 16.0, and 18.0 mm probes. Confirm the supplied set in writing.
What does MP mean on the 22D HIFU Machine?
MP means multi-point. The mode arranges multiple ultrasound points into a line, helping the handpiece cover a planned strip with fewer individual placement changes. Providers select the handpiece, probe, energy, and spacing for the treatment area.
Which modes are available on each handpiece?
The 13D Multi-Dim handpiece uses Point and MP modes. The 18D RS handpiece uses Point, MP, Circle, and AI Spiral modes and includes 6.78 MHz RF. Mode availability and settings should be confirmed with the final machine configuration and operator training.
How much does a 22D HIFU machine cost?
The final price depends on the standard and optional probes, order quantity, destination, shipping method, branding, and support scope. The supplied PDF does not verify a current fixed price, so request an itemized written quotation before comparing offers.
Is training available for the 22D HIFU Machine?
Yes. FotroHIFU provides live one-to-one video training covering machine operation, probe selection, and protocol guidance. Confirm the schedule, language, team questions, and direct support contact in the written quotation before shipment.
