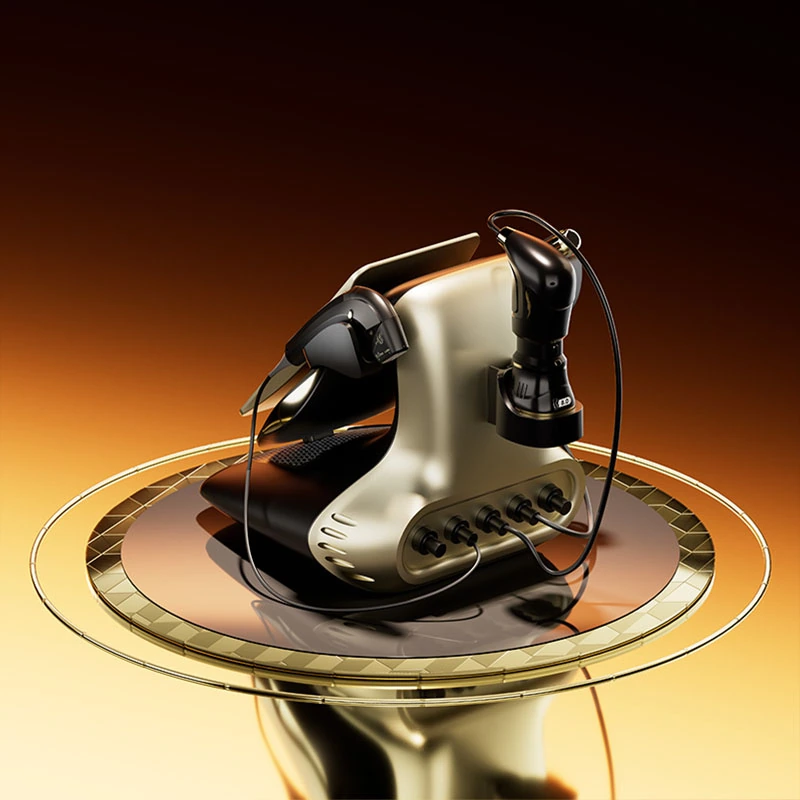

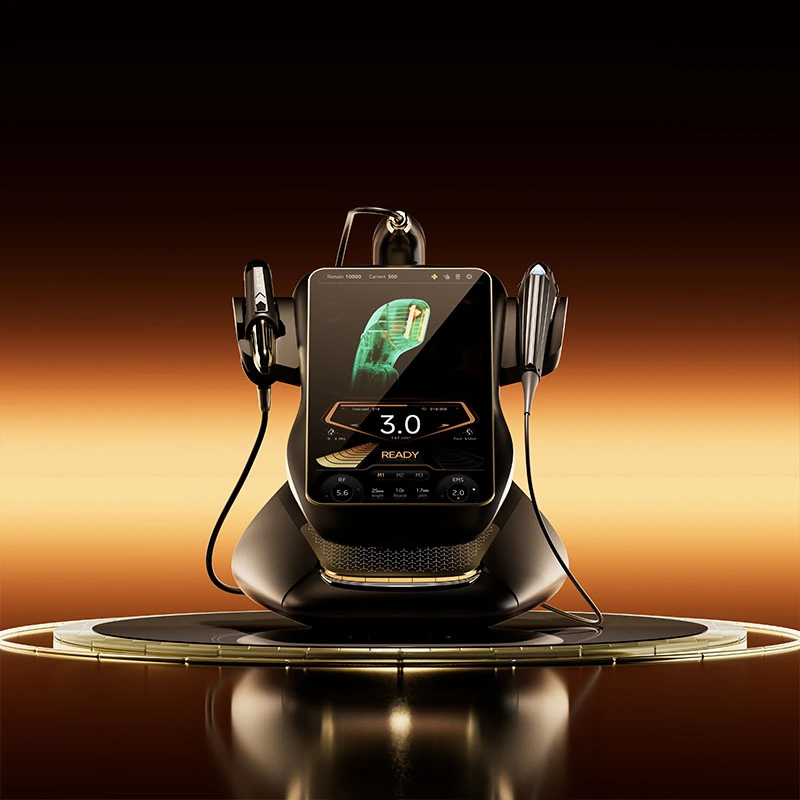

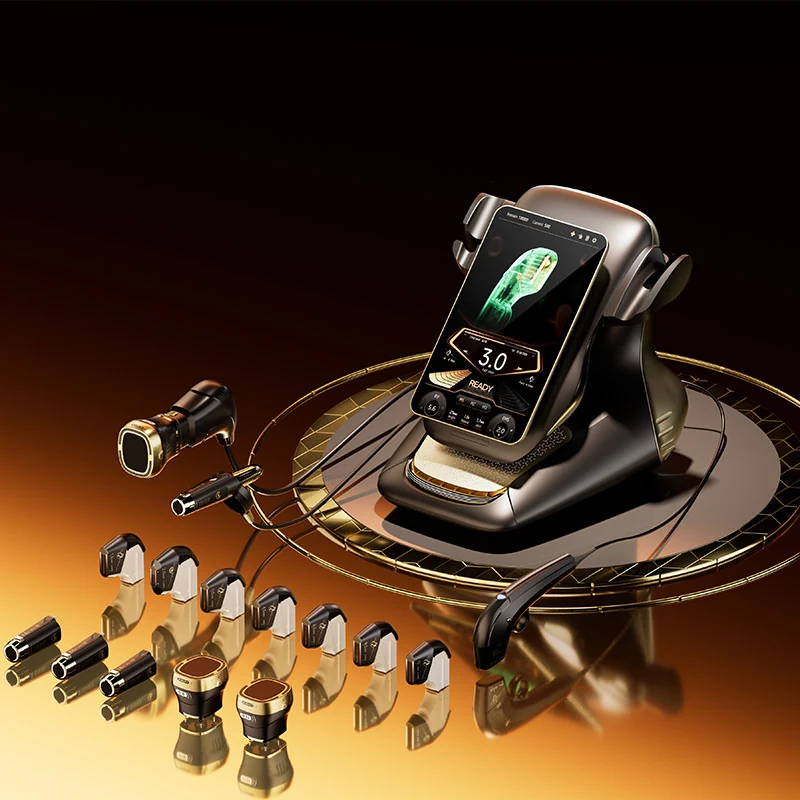

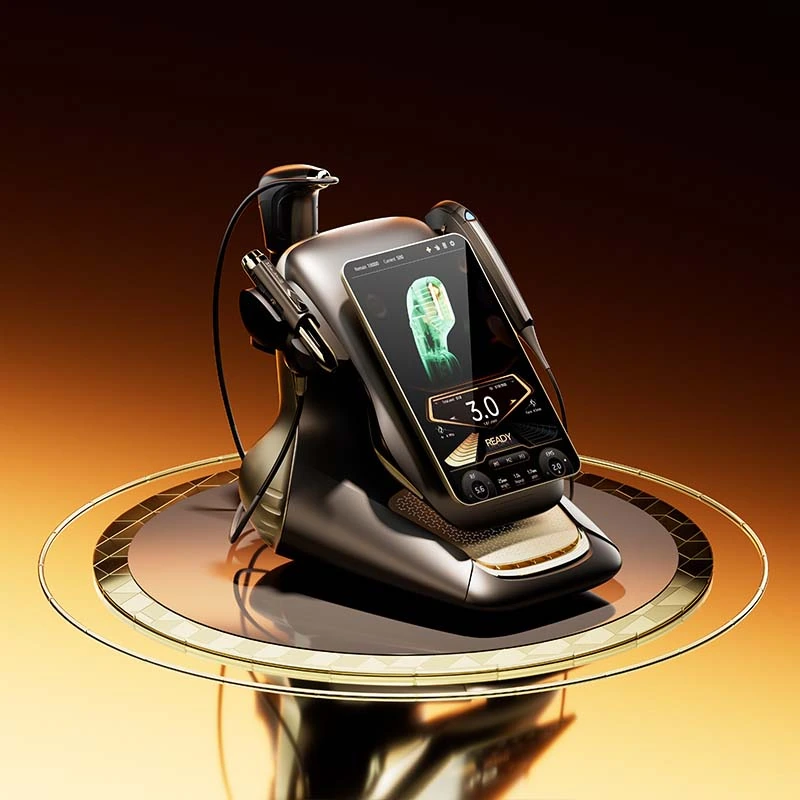

25D HIFU Machine with 360 Max Technology
The 25D HIFU Machine combines HIFU, RF, and EMS technologies in one professional system for non-invasive facial lifting, precise eye-area treatments, and body contouring. Its three purpose-built handpieces help you adapt treatment precision and coverage to different anatomical areas while maintaining an efficient clinical workflow. As a direct HIFU machine manufacturer, FotroHIFU provides comprehensive OEM/ODM customization, live one-to-one training, and technical support for clinics, medical spas, aesthetic chains, and distributors.
Core Technologies of the 25D HIFU Machine
The 360 Max System combines movement control, two delivery modes, and three energy roles in one operator workflow.
360° Circular Energy Delivery
The handpiece follows a full circular path across curved surfaces, supporting more continuous energy coverage with less manual repositioning.
- Full-angle movement: The treatment head moves through a 360° path instead of relying only on repeated straight-line placement.
- Contour coverage: Circular movement helps maintain a consistent treatment path across curved facial and body areas.
17-Point Normal and 417-Point MP Modes
Normal mode delivers 17 separated points per shot, while MP mode delivers 417 closely spaced micro-points for denser linear coverage.
- Normal Mode: Supports controlled point placement for smaller or more targeted treatment areas.
- MP Mode: Creates denser and more continuous coverage across broader treatment zones.
AI Spiral Care with Up to 40 × 50 mm Coverage
AI Spiral Care distributes energy through a bidirectional spiral path across a treatment field of up to 40 × 50 mm.
- Spiral delivery: Positive and reverse spiral movement expands coverage beyond a single point or straight line.
- Large-area workflow: The wider output field supports more efficient coverage across larger body treatment zones.

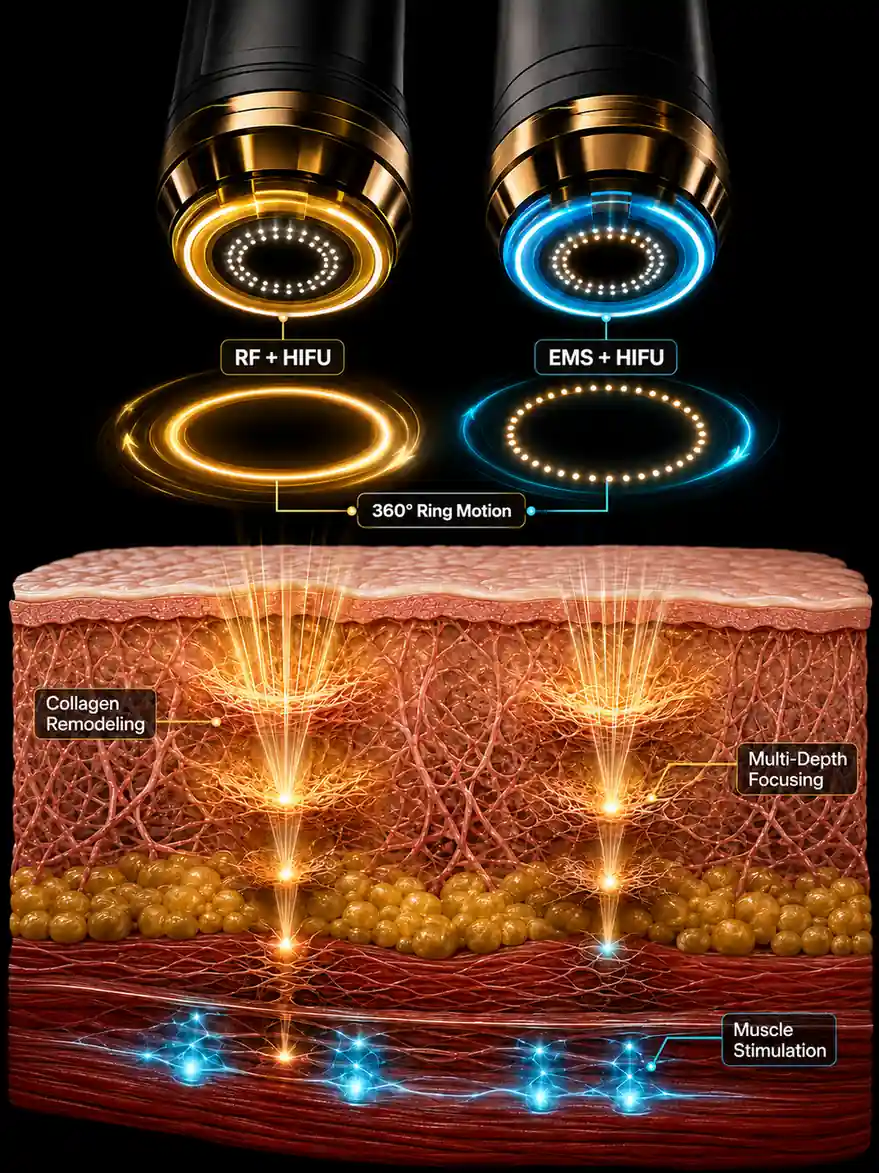

How HIFU, 6.78 MHz RF and EMS Work Together
HIFU, RF and EMS perform defined roles at different tissue levels, allowing operators to plan layered treatments from one platform.
- HIFU: Delivers focused ultrasound to selected structural depths, with cartridge options ranging from 1.5 to 18.0 mm.
- 6.78 MHz RF: Provides controlled dermal heating to support collagen-focused treatment.
- EMS: Adds electrical stimulation at the muscle level to complement structural and dermal energy delivery.

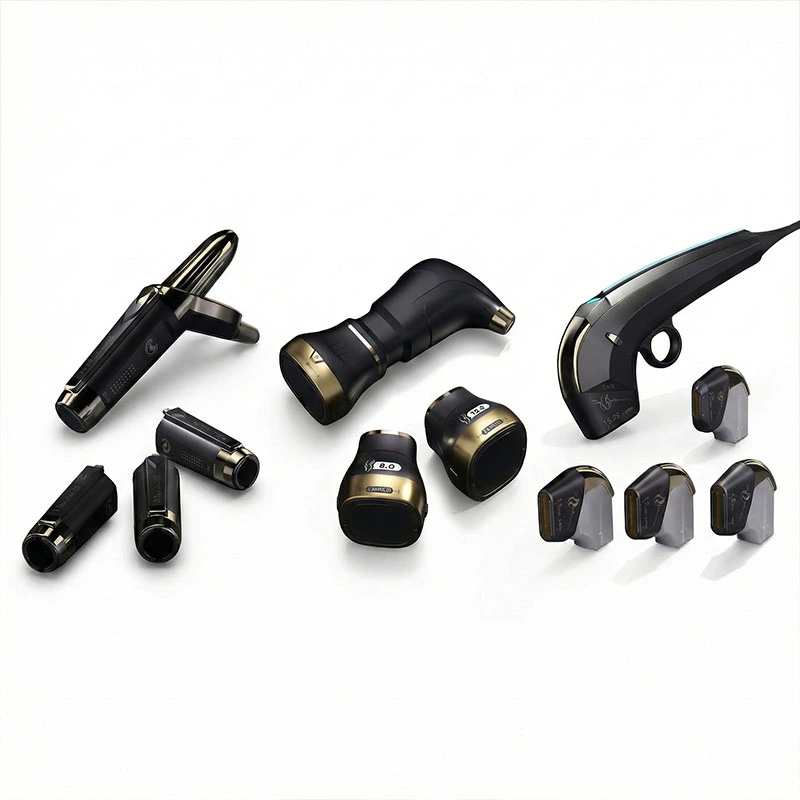

Three Specialized Treatment Handpieces
All three handpieces use HIFU to focus ultrasound energy at selected tissue depths, creating controlled thermal coagulation points that support collagen contraction and remodeling. The 15RS, 36RS and 18RS adapt this energy delivery to precision facial work, full-face coverage and larger body areas.

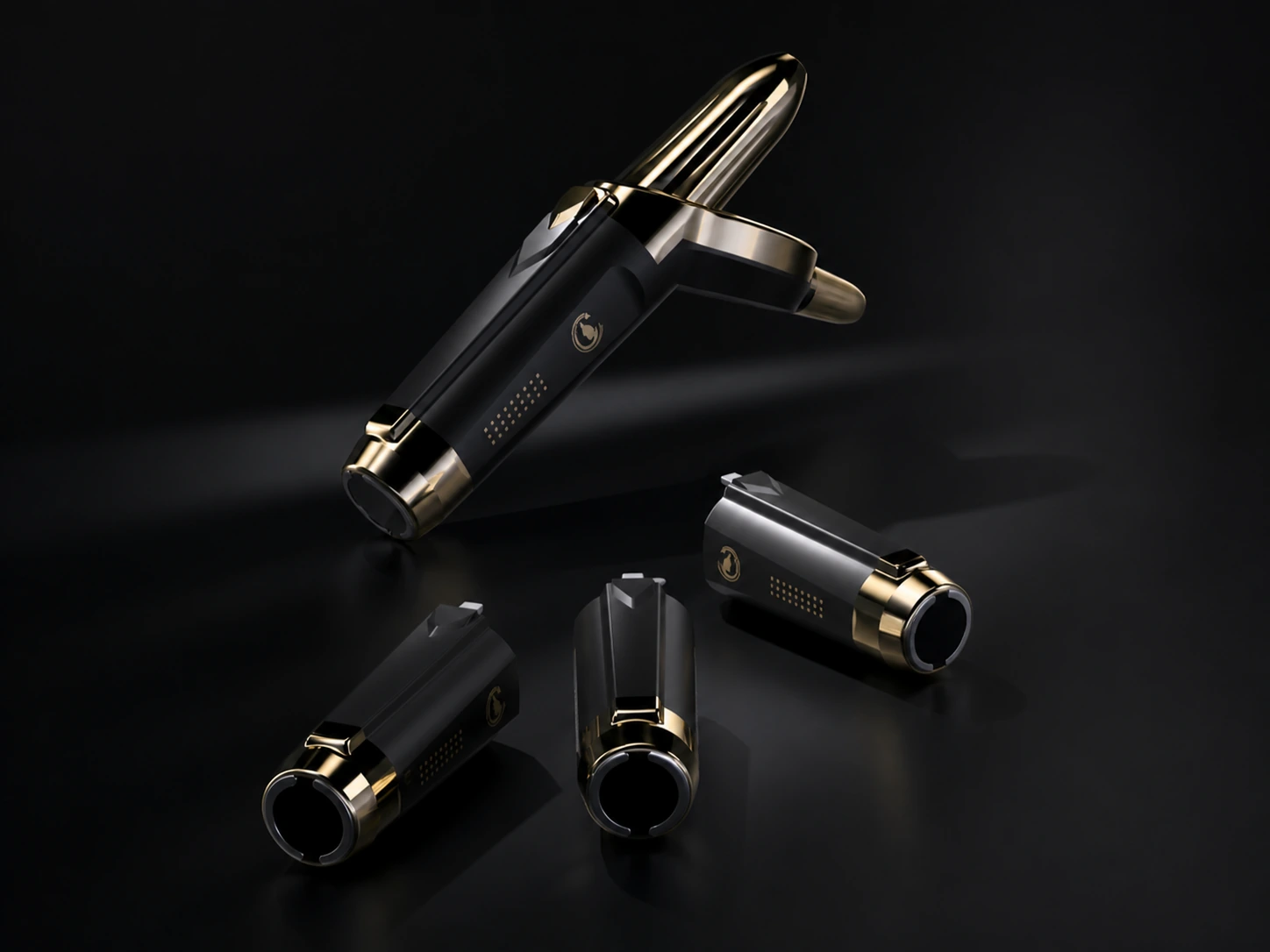

15RS face and eye handpiece
The 15RS uses X- and Y-axis movement for precise energy placement across smaller facial and eye areas.
- Delivery pattern: Multidirectional movement provides more flexible control than a single fixed-line path.
- Workflow value: A dedicated 2.0 mm eye cartridge supports precise eye-area work without requiring a separate handpiece.
- Cartridge depths: Standard 1.5, 2.0, 3.0 and 4.5 mm; optional 6.0, 9.0 and 13.0 mm.

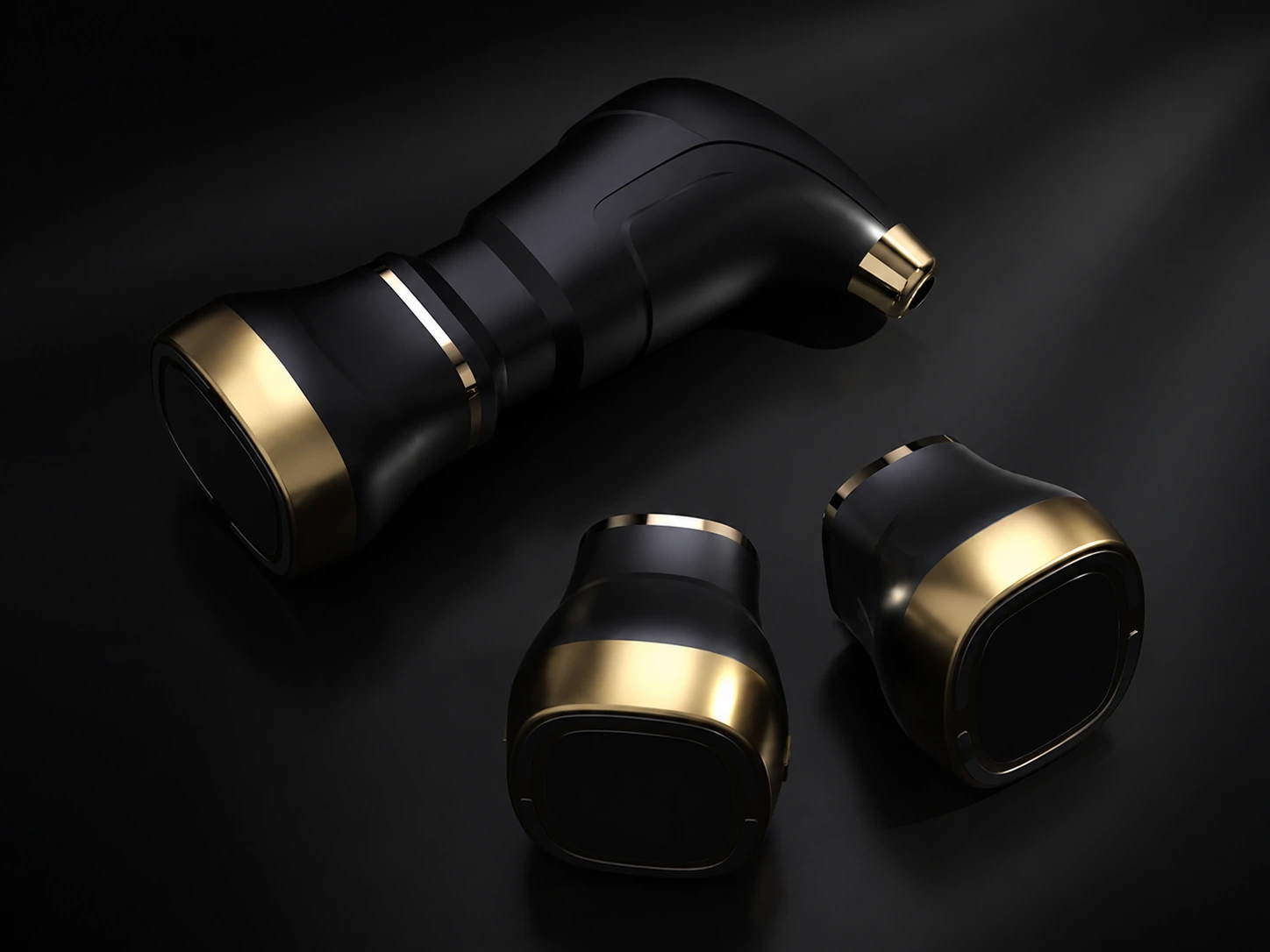

36RS full-face coverage handpiece
The 36RS combines circular movement with micro-pulse dot-matrix delivery for broader face and neck coverage.
- Delivery pattern: Structured dot-matrix output supports consistent coverage across wider facial areas.
- Workflow value: Operators can plan complete full-face passes with less repeated repositioning between small treatment zones.
- Cartridge depths: 1.5, 3.0 and 4.5 mm.

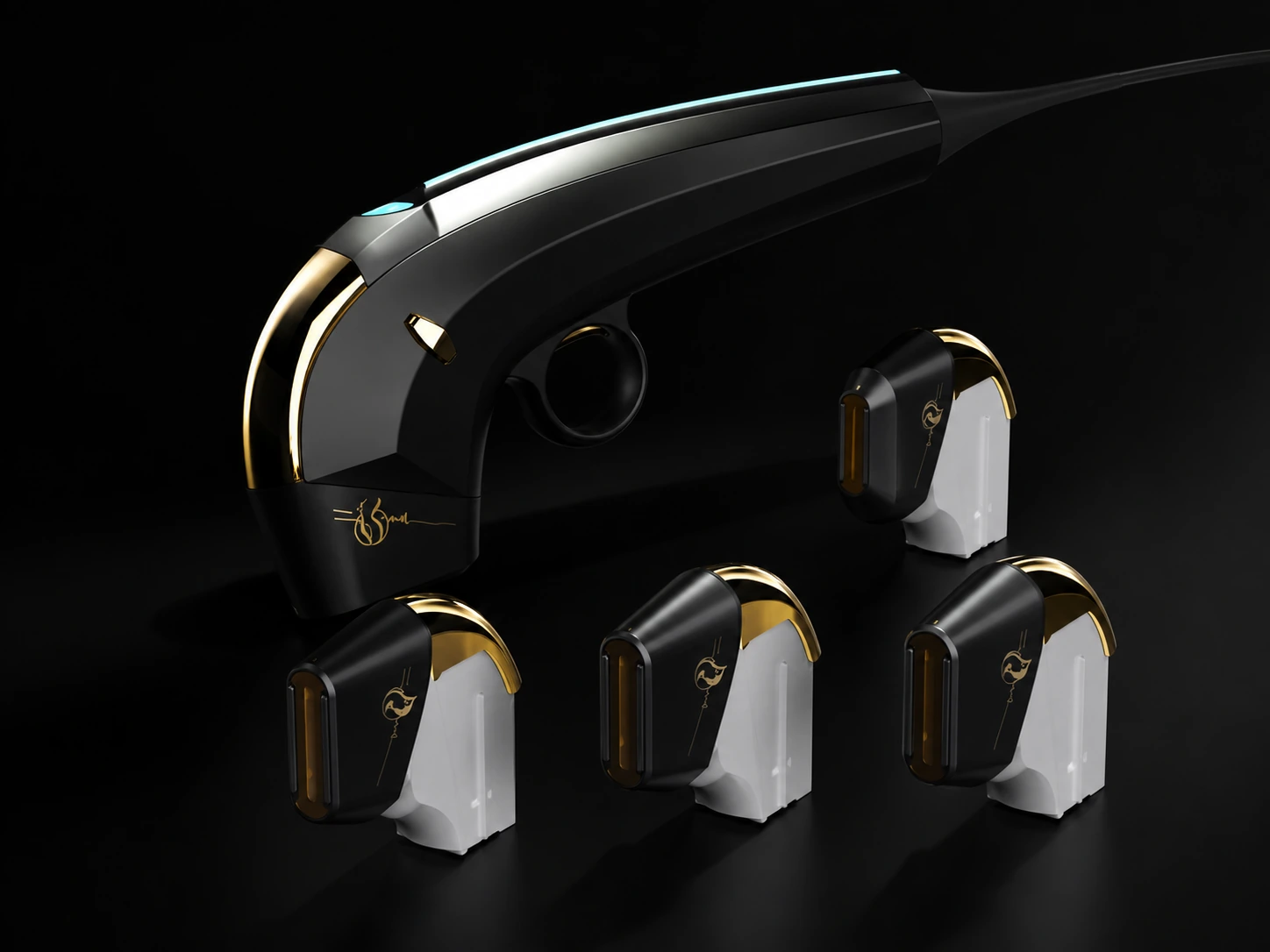

18RS body contouring handpiece
The 18RS pairs spiral movement with deeper cartridges for structured coverage across larger body areas.
- Delivery pattern: Spiral movement expands coverage beyond repeated point-by-point or straight-line placement.
- Workflow value: The dedicated body configuration supports structured treatment passes across larger areas.
- Cartridge depths: Standard 8.0 and 13.0 mm; optional 6.0, 10.0, 16.0 and 18.0 mm.
25D HIFU Machine Applications for Face, Eye and Body
Facial lifting and contouring
Focused ultrasound supports lifting and collagen remodeling across the upper, middle and lower face.
- Treatment goals: Firmer-looking cheeks, softened facial lines, improved lower-face definition and tighter-looking neck skin.
- Key areas: Forehead, cheeks, nasolabial folds, lower face, jawline, submental area and neck.
- Service options: Full-face lifting, lower-face and jawline contouring, or combined face-and-neck treatments.
Precision Eye-Area Tightening
Focused treatment across smaller periocular zones supports smoother-looking eye contours and improved brow-area firmness.
- Treatment goals: Soften the appearance of crow’s feet, under-eye lines and mild skin laxity.
- Key areas: Outer eye, under-eye area and brow region.
- Service options: A standalone eye-area treatment or an add-on to a full-face protocol.
Body Contouring and Skin Firming
Deeper HIFU delivery supports localized contouring and firmer-looking skin across larger body areas.
- Treatment goals: Address localized fat, loose-looking skin and body-shaping concerns.
- Key areas: Abdomen, waist, thighs, upper arms and buttocks.
- Service options: Single-zone treatments or multi-area body-contouring plans.
25D HIFU Machine Specifications
| Specification | Details | Specification | Details |
|---|---|---|---|
| System model | 360 MAX | Operating handpieces | 15RS, 36RS and 18RS |
| 15RS cartridges | Standard: 1.5, 2.0, 3.0 and 4.5 mm. Optional: 6.0, 9.0 and 13.0 mm. | 36RS cartridges | Standard: 1.5, 3.0 and 4.5 mm. |
| 18RS cartridges | Standard: 8.0 and 13.0 mm. Optional: 6.0, 10.0, 16.0 and 18.0 mm. | Cartridge depth range | 1.5 to 18.0 mm |
| Rated power | 1180 W | Power supply | Confirm destination voltage and mains frequency in the written quotation. |
| Operating frequencies | HIFU: 2, 4 and 5.5 MHz. RF: 6.78 MHz. | Ultrasonic output setting | 0.1 to 3.0, adjustable in 0.1 steps |
| Treatment modes | Normal and MP | Mode output | Normal: 17 separated points per shot. MP: 417 closely spaced micro-points. |
| AI Spiral Care coverage | Up to 40 × 50 mm | Repeat time | 0.1 to 1.0 seconds in 0.1-second steps |
| Treatment length | 5 to 25 mm in 5 mm steps | Point spacing | 0.1 to 2.0 mm in 0.1 mm steps |
| Weight | Instrument: 10 kg. Gross packed weight: 20 kg. | Package dimensions | 60 × 43 × 57 cm |
Why Choose Our 25D HIFU Machine
FotroHIFU supports branding, operator onboarding and ongoing technical coordination from configuration through after-sales service.
OEM and ODM Customization
Build a clinic or distributor configuration around approved brand requirements. OEM customization is available from one unit.
- Branding: Logo, machine color and packaging.
- Interface: Interface presentation and supporting materials.
- Production approval: Confirm artwork, placement, colors and document changes before production.
One-to-One Operator Training
Live one-to-one video training gives your team a direct onboarding route before launch.
- Setup: Installation, startup and basic device checks.
- Operation: Handpiece, cartridge and Normal or MP mode selection.
- Upkeep: Routine maintenance and basic troubleshooting.
Direct Manufacturer After-Sales Support
Direct manufacturer contact provides one route for maintenance questions and fault communication.
- Issue review: Share the serial number, photos, video and an issue description.
- Ongoing support: Confirm maintenance arrangements, spare parts and consumable availability.
- Order terms: Confirm warranty scope and support terms in the written quotation.
Quality Manufacturing and Compliance Documentation
FAQ
What is a 25D HIFU Machine?
The FotroHIFU 25D HIFU machine is a professional 360 Max platform that combines HIFU, 6.78 MHz RF, and EMS with three interchangeable handles for face, eye, and body treatments.
How is the 25D HIFU Machine different from older models?
Older systems often rely on one energy type or fewer handpieces. This model combines three modalities with 360° rotating handles and cartridge depths from 1.5 to 18.0 mm.
Is treatment with the 25D HIFU Machine painful?
Most clients describe a deep, warm, or tingling sensation during energy delivery. Comfort varies by area, energy setting, and individual sensitivity, and a topical numbing cream may be used where appropriate.
When can clients see results after a 25D HIFU Machine treatment?
Some clients notice initial tightening after treatment. Collagen remodeling develops over the following 2 to 3 months, and the duration of results varies by client, treatment plan, and lifestyle.
Can the 25D HIFU Machine treat body areas as well as the face?
Yes. The 18RS body handpiece supports depths from 6.0 to 18.0 mm, with 8.0 and 13.0 mm supplied as standard. It is intended for areas such as the abdomen, waist, thighs, arms, and buttocks.
Is there downtime after a 25D HIFU Machine treatment?
Most clients can return to normal activities after treatment. Temporary redness or mild swelling may occur, and treatment suitability should be assessed before each session.
Is training included with the 25D HIFU Machine?
Yes. Live one-to-one video training is included to cover machine setup, handpiece selection, treatment modes, routine maintenance, and basic troubleshooting.
Can I add my own logo to the 25D HIFU Machine?
Yes. Logo customization starts from one unit for clinics and distributors building their own brand. Confirm artwork, placement, and production details before ordering.
How much does the 25D HIFU Machine cost?
Pricing depends on the selected handpieces, cartridges, order quantity, branding, destination, and shipping. Request an itemized quotation so each included component and service is clear.
