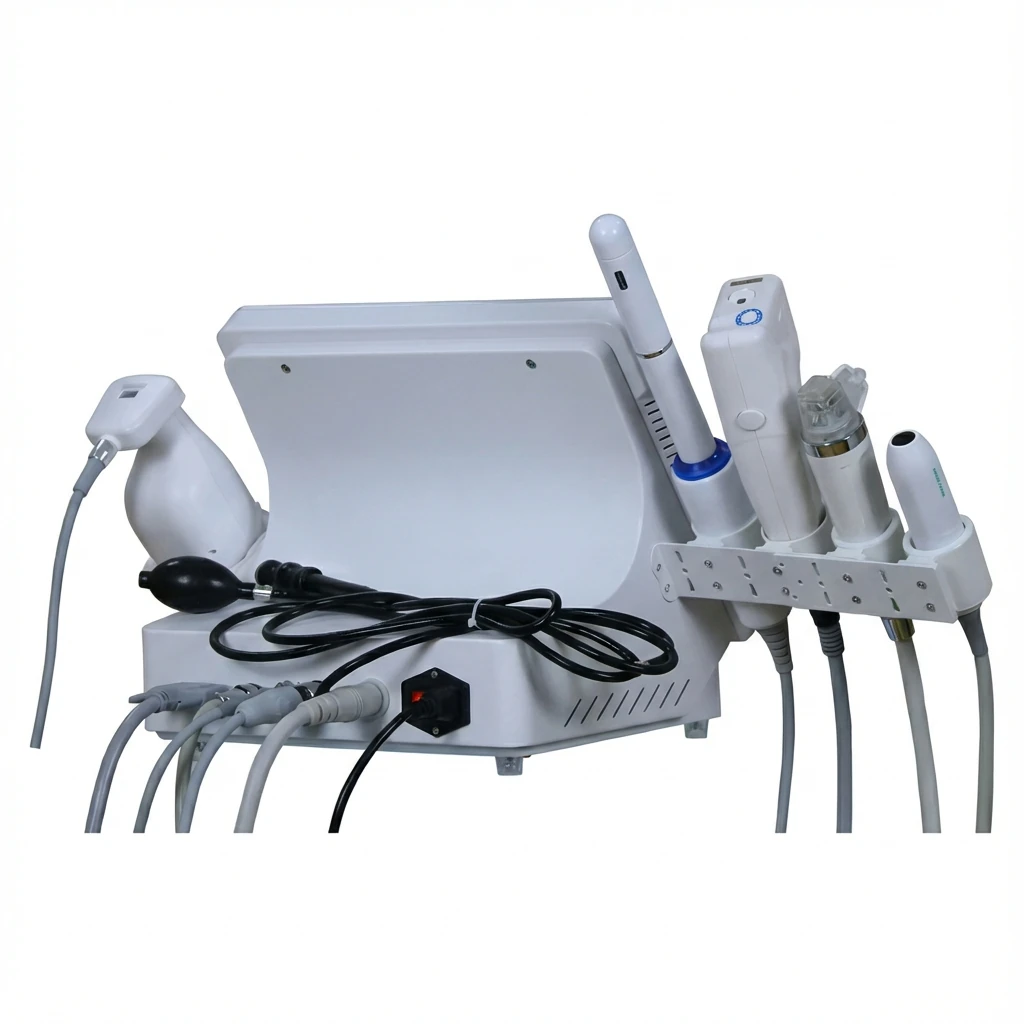

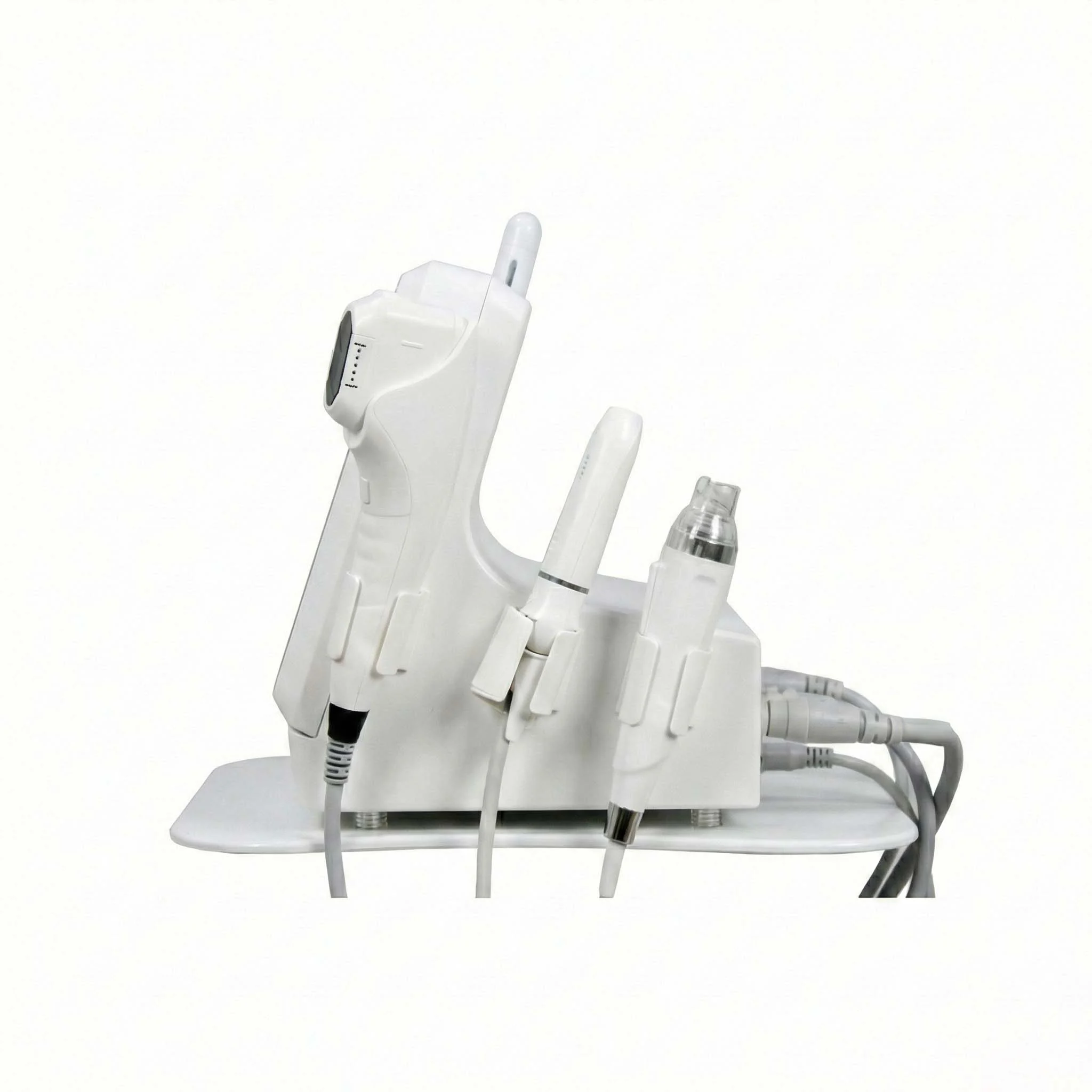

Multi-function 4D HIFU Machine
FotroHIFU Max is a configurable multi-function 4D HIFU platform for clinics, medical spas, and equipment distributors. Choose from five handpieces: multi-line HIFU, vacuum-assisted RF microneedling, Lipo HIFU, 360° intimate-care HIFU, and VMAX HIFU with RF. Combine only the functions that match your services and target market. As the direct manufacturer, we also provide flexible OEM/ODM support for branding, interface, packaging, and market-specific configurations.
What is a multi-function 4D HIFU machine?
4D HIFU at the core
FotroHIFU Max is built around a multi-line 4D HIFU handpiece. It delivers up to 12 focused-ultrasound lines per shot at the focal depth defined by the selected cartridge.
Dedicated handpieces add VMAX HIFU, RF microneedling, Lipo HIFU and 360° intimate care on the same configurable console.
Start with 4D HIFU. Add what your market needs.
Optional modules
How each 4D HIFU Machine handpiece works

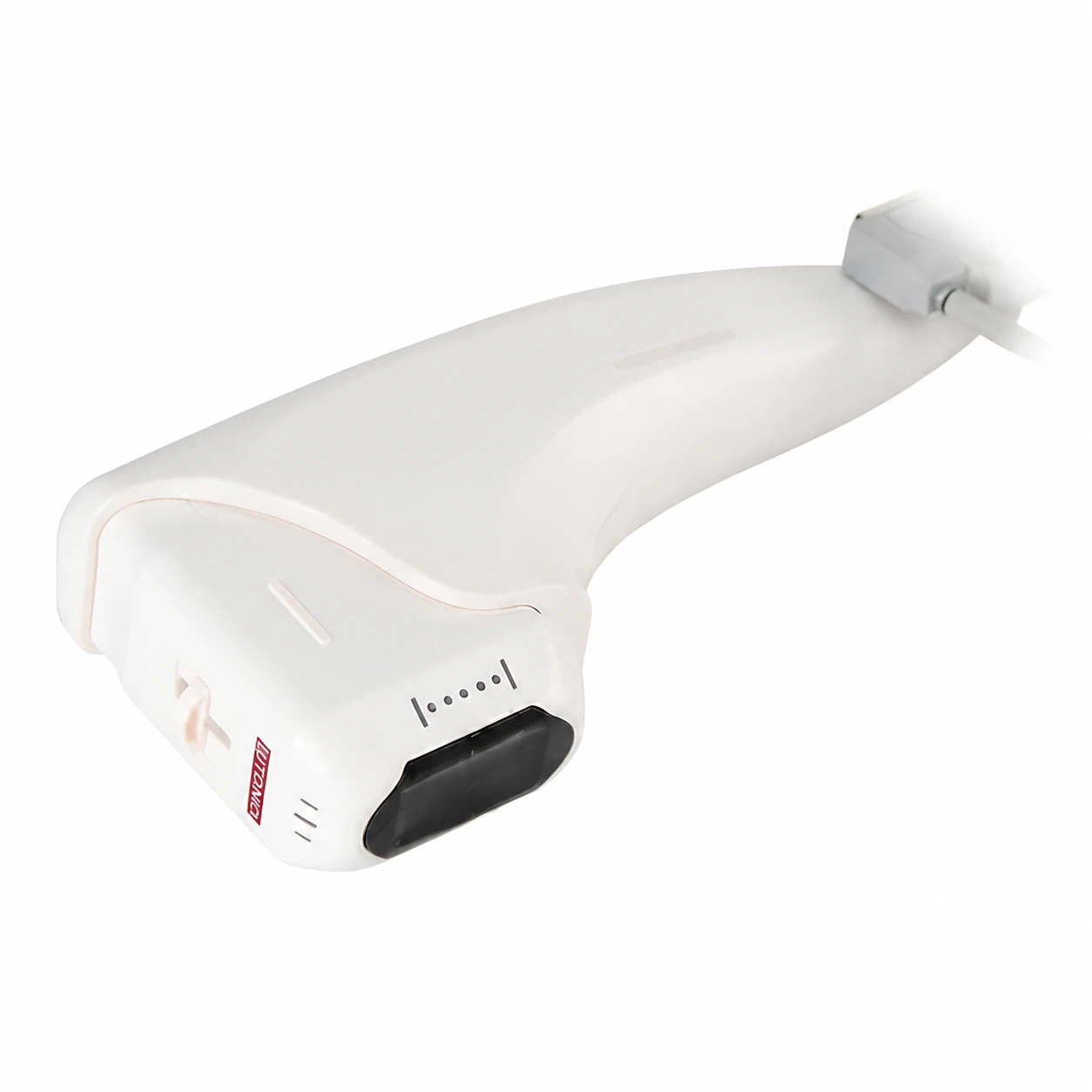

4D Multi-Line HIFU
StandardThe 4D multi-line handpiece is the core HIFU delivery system in FotroHIFU Max. Interchangeable cartridges focus ultrasound at a defined tissue depth, while multi-line output supports structured coverage across professional face and body protocols.
- Multi-line coverage: Delivers up to 12 focused ultrasound lines per shot for faster coverage of larger planned areas.
- Depth-specific targeting: Each cartridge sets one focal depth for the selected treatment zone and protocol.
- Platform role: Supports structured grid coverage, while optional modules handle smaller areas or other energy modes.

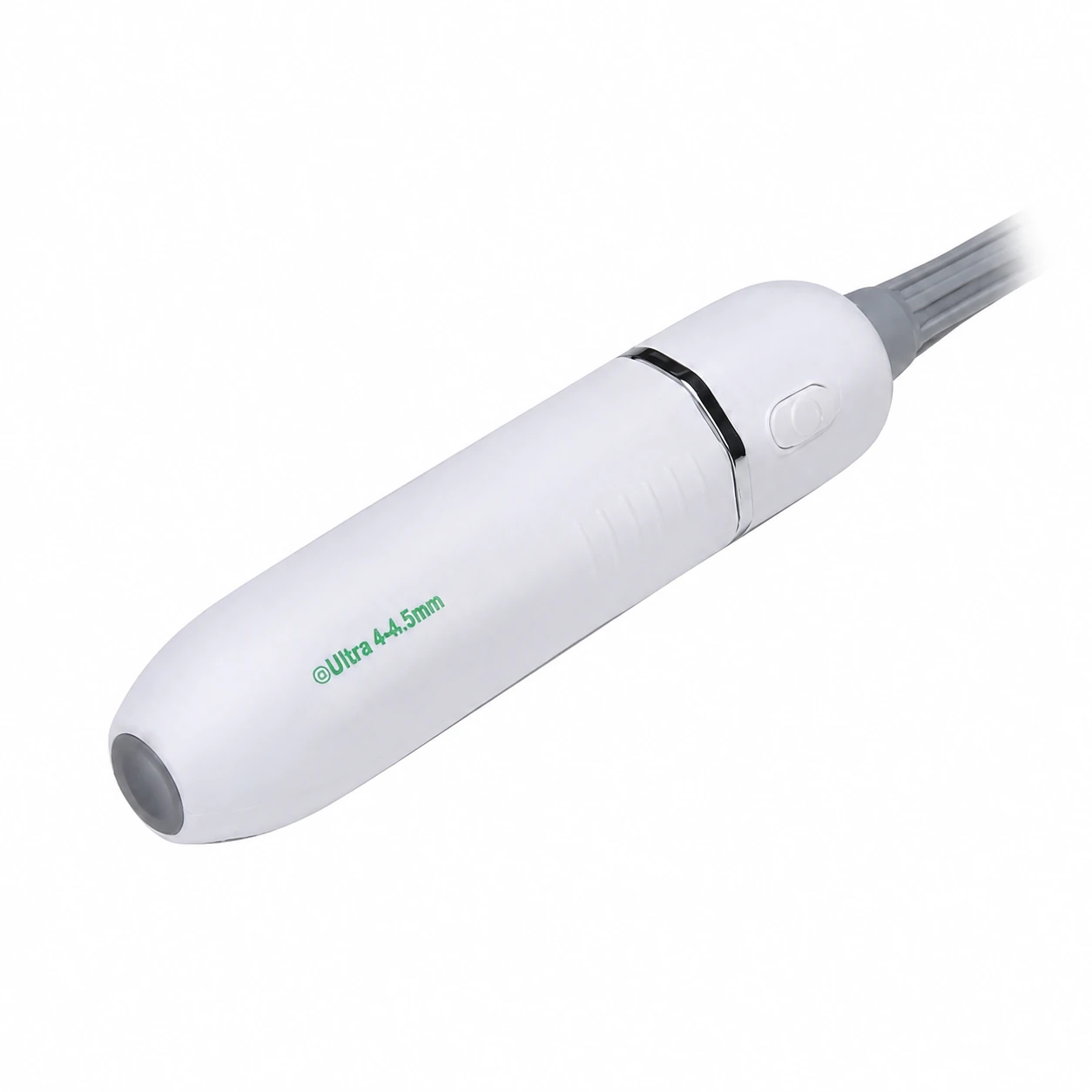

VMAX HIFU
OptionalThe VMAX handpiece adds a concentrated, point-by-point HIFU workflow with an integrated RF mode. Its smaller delivery footprint gives trained operators greater placement control across compact or contoured facial zones.
- Point-by-point placement: Uses a compact treatment pattern for more controlled positioning than the 4D multi-line array.
- Facial contour control: Fits smaller or curved facial zones where broad multi-line coverage is less practical.
- Complements 4D HIFU: Adds precision for compact areas while the 4D handpiece covers wider treatment zones.

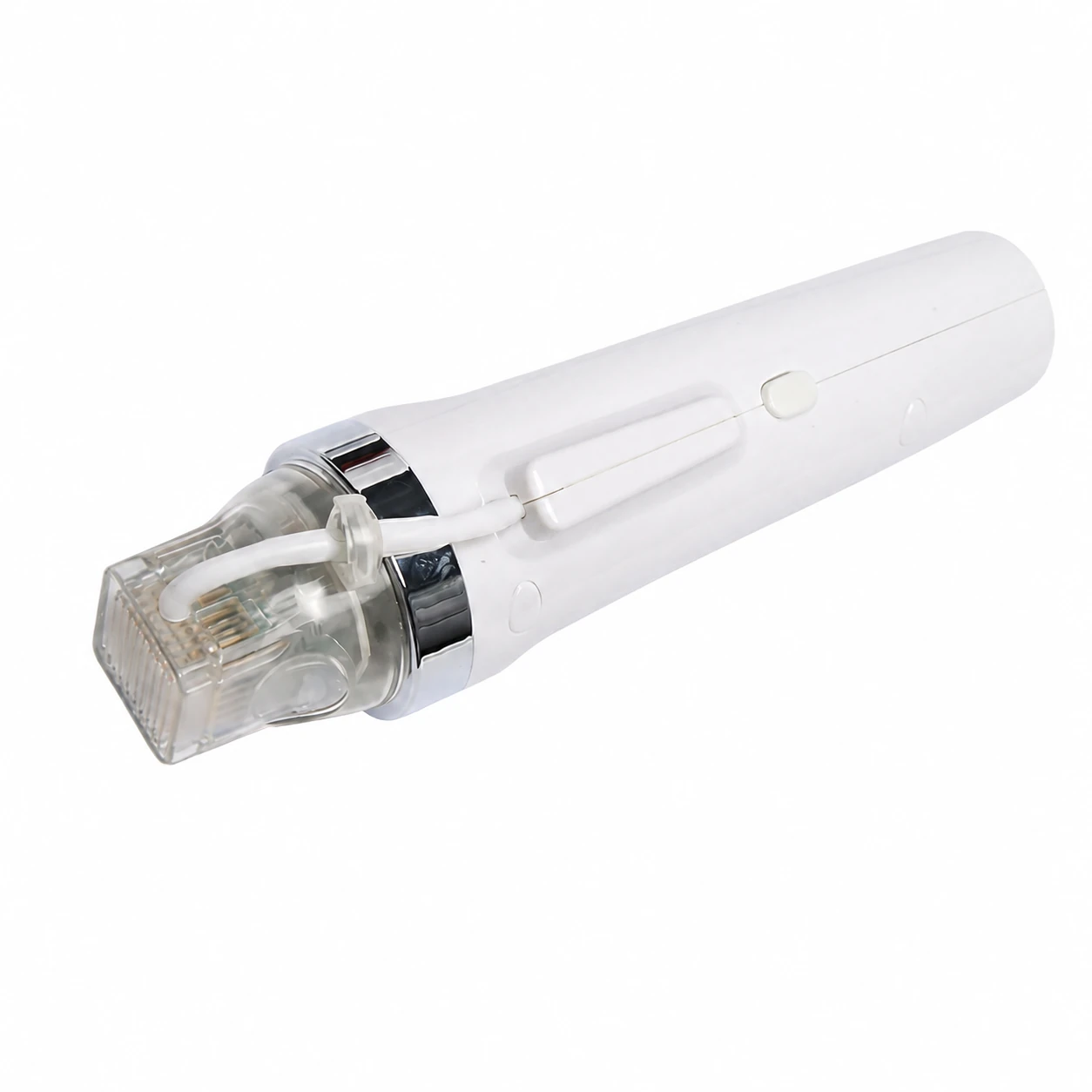

Fractional RF Microneedling
Optional add-onThe fractional RF microneedling handpiece combines vacuum-assisted skin contact, adjustable microneedle penetration and controlled RF delivery. It expands FotroHIFU Max beyond ultrasound lifting into professional dermal remodeling and resurfacing protocols.
- Vacuum-assisted contact: Suction steadies the skin against the tip before needle insertion for consistent contact.
- Depth-controlled RF: Needles adjust from 0.5 to 3.5 mm and release RF only from their exposed tips.
- Platform role: Supports protocols for uneven texture, enlarged-looking pores, acne-scar appearance and stretch marks.

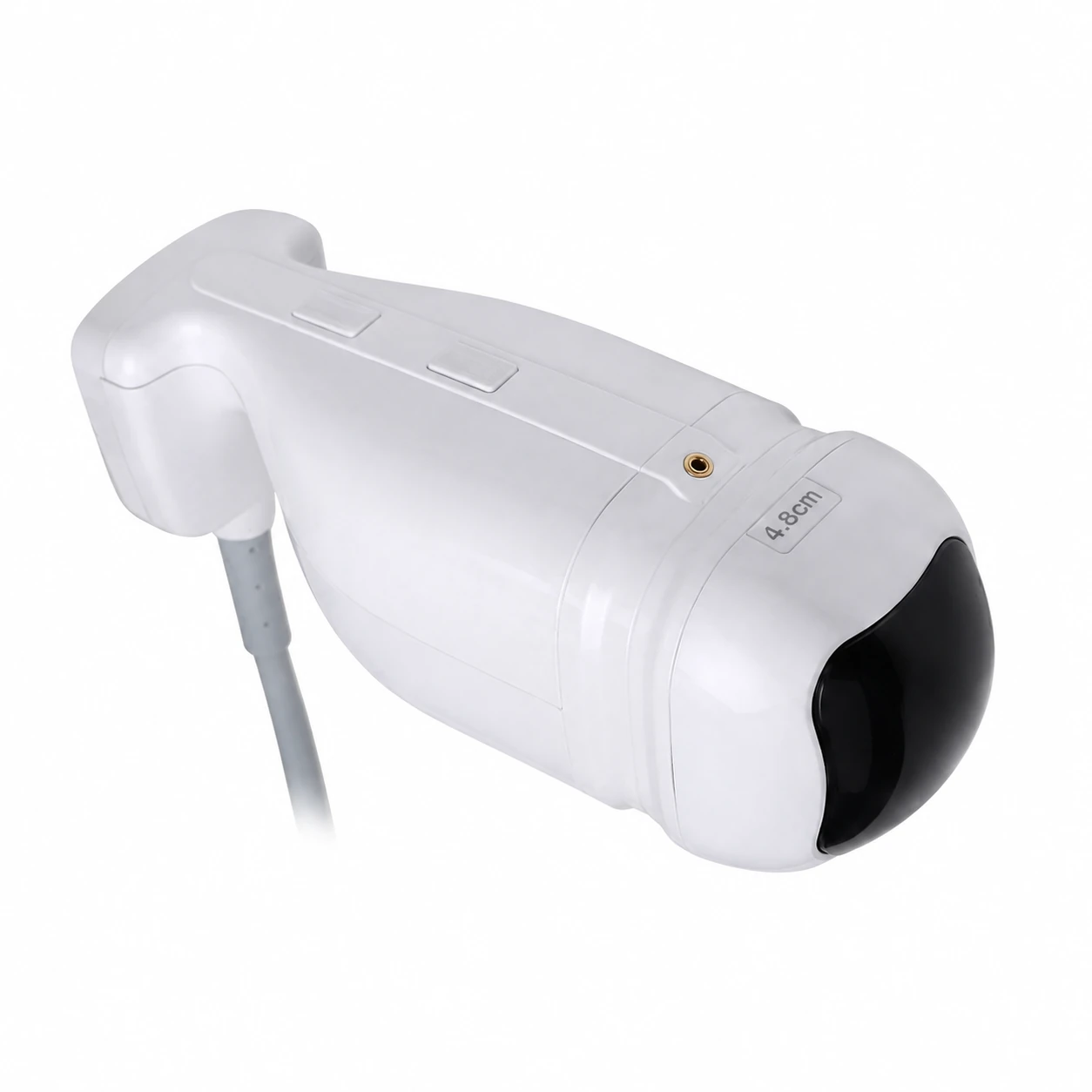

Lipo HIFU Body Handpiece
Configuration optionThe Lipo HIFU handpiece uses deeper focused-ultrasound cartridges at 8.0 and 13.0 mm to support professional body-contouring protocols. Its applicator and focal depths are designed for subcutaneous body areas rather than superficial facial tissue.
- Deeper focal placement: Fixed 8.0 or 13.0 mm cartridges extend ultrasound beyond typical facial HIFU depths.
- Designed for body areas: Supports structured coverage across larger localized zones that require deeper placement.
- Platform role: Adds body HIFU to the same console without replacing the facial 4D and VMAX handpieces.

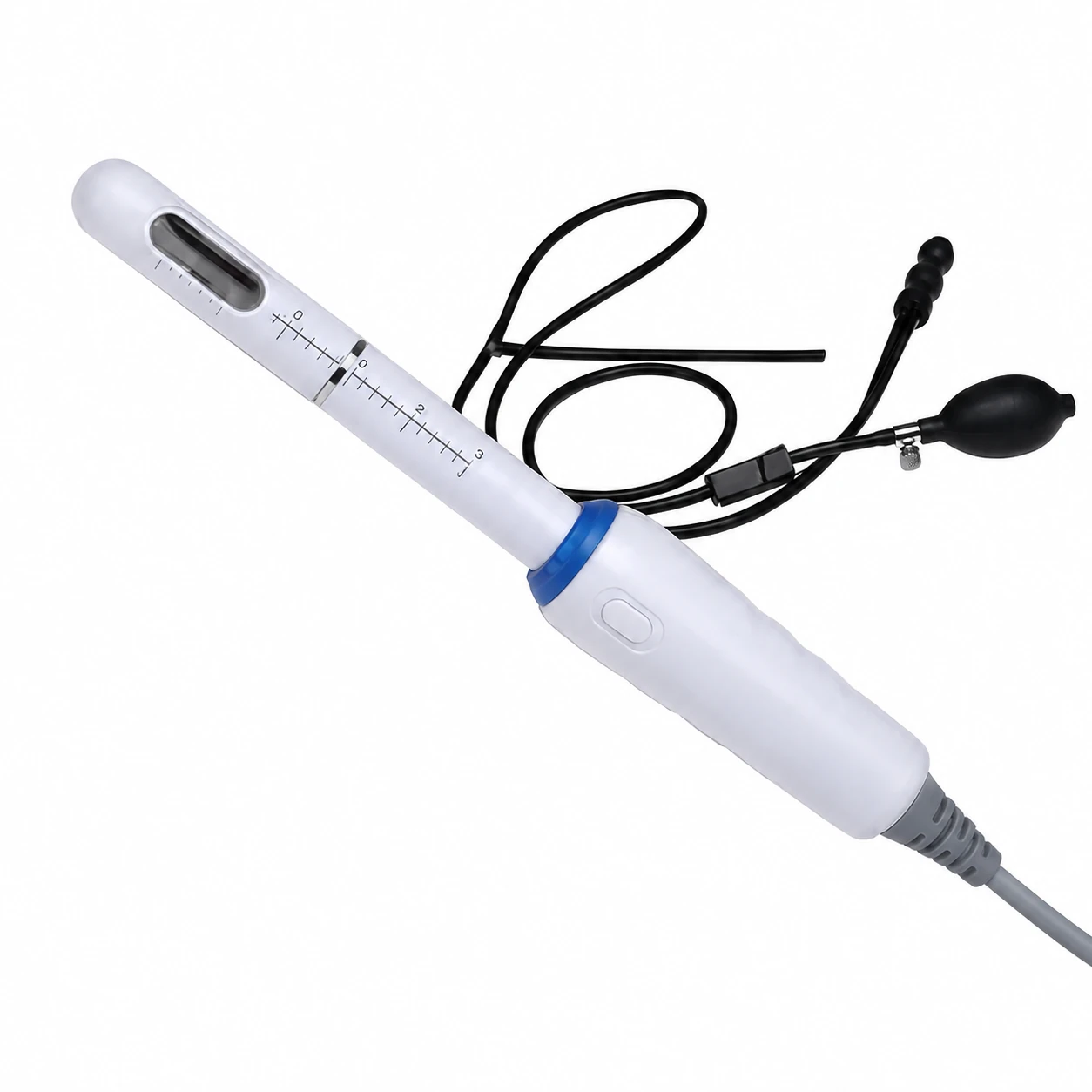

360° Intimate-Care HIFU Handpiece
Configuration optionThe 360° intimate-care handpiece uses dedicated 3.0 and 4.5 mm probes to deliver focused ultrasound in a circumferential pattern. Its applicator and delivery geometry are designed specifically for professional intimate-care protocols and are separate from external face and body workflows.
- Circumferential delivery: The 360° pattern distributes focused ultrasound around the treatment area.
- Probe-specific depth: Select the fixed 3.0 or 4.5 mm probe for the intended tissue level and approved protocol.
- Professional workflow: Requires training, client assessment, hygiene procedures and compliance with local rules.

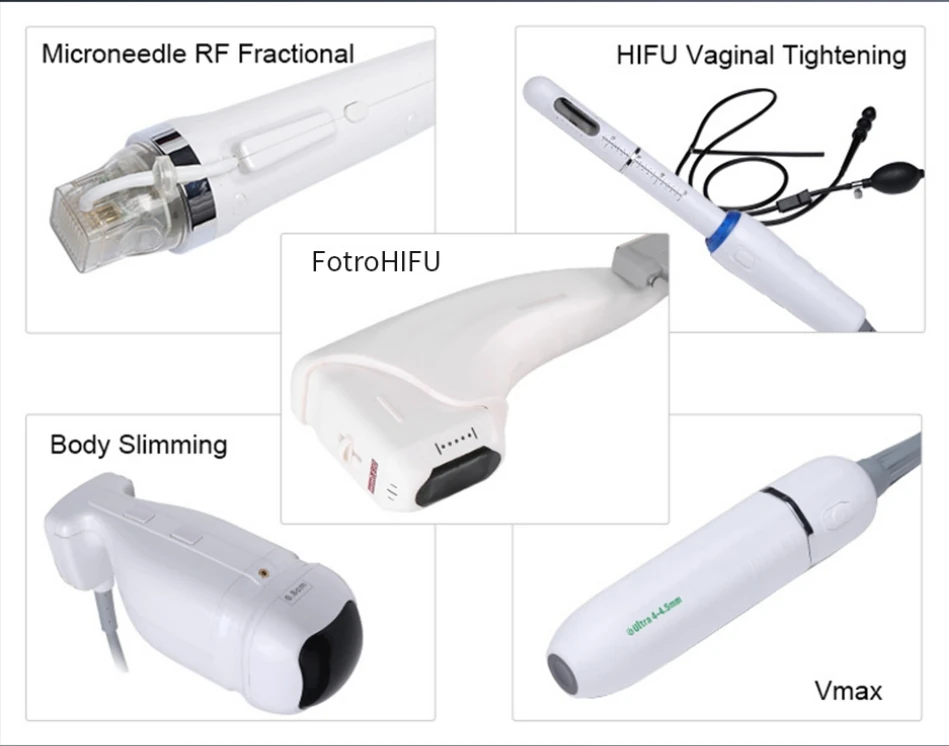

Handpiece configuration summary
| Handpiece | Status | Delivery | Depth options | Primary role |
|---|---|---|---|---|
| 4D HIFU | Standard | Up to 12 lines per shot | 1.5 to 16.0 mm | Face and body workflows |
| Vmax HIFU | Optional | Single point | 1.5, 3.0, 4.5, 8.0, 13.0 mm | Smaller facial zones |
| Fractional RF microneedling | Optional add-on | Vacuum-assisted MNRF | 0.5 to 3.5 mm needle depth | Skin texture and resurfacing |
| Lipo HIFU | Configuration option | Focused ultrasound | 8.0, 13.0 mm | Body applications |
| 360° intimate care | Configuration option | Dedicated probe workflow | 3.0, 4.5 mm | Professional intimate care |
4D HIFU machine applications
The actual service range depends on the selected handpieces, cartridge depths, operator training, client assessment and local requirements.
Face and Neck
The standard 4D HIFU handpiece treats face and neck at the depth set by the installed cartridge. The optional Vmax handpiece adds single-point delivery for delicate zones such as around the eyes and lips.
Body applications
The standard HIFU depth range includes face and body options. The Lipo HIFU handpiece can add 8.0 mm and 13.0 mm cartridges for a dedicated body workflow.
Intimate care
The 360° handpiece supports intimate-care applications with 3.0 mm and 4.5 mm probes. This function requires appropriate training, client screening and compliance with local rules.
Skin texture and resurfacing
The optional MNRF handpiece combines adjustable microneedles and RF energy for professional texture-focused services. It can help improve the appearance of acne scars, enlarged pores, uneven texture and stretch marks, subject to operator training and client assessment.
Why Choose FotroHIFU for Your 4D HIFU Machine
From configuration to after-sales, clinics and distributors work with one factory team, not a chain of agents. Order details are confirmed before quotation, and support continues after the machine ships.
Configuration and quotation clarity
The 4D HIFU handpiece with 3 standard cartridges is quoted separately from optional add-ons: Vmax, RF microneedling, Liposonix, and the 360° intimate-care handpiece. Inquiries are answered within 1 business day, so you receive a clear, itemized quote without back-and-forth about what is included.
Training and warranty fixed at purchase
One-on-one remote training prepares your team to operate FotroHIFU independently. The machine carries a 1-year warranty, and original replacement cartridges and spare parts are supplied directly by the factory. Service centers cover Europe, the USA, Australia, and the Middle East.
OEM and ODM from 1 unit
Logo-level branding starts with the same 1-unit MOQ as a standard order. Private-label production and full ODM co-development are available to distributors scaling into higher volumes. FotroHIFU has delivered 1,000+ private-label builds since 2018.
Multi-function 4D HIFU Machine Specifications
- Product name
- FotroHIFU Max
- Platform
- Configurable multi-function 4D HIFU machine
- Rated current
- 1 A
- Power
- 800 W
- Energy output
- 0.1 to 2.0 J, adjustable
- Standard HIFU package
- 4D multi-line HIFU handpiece with three HIFU cartridges
- HIFU depth options
- 1.5, 3.0, 4.5, 6.0, 8.0, 10.0, 13.0 and 16.0 mm
- HIFU cartridge life
- 20,000 shots per cartridge
- Optional Vmax
- 1.5, 3.0, 4.5, 8.0 and 13.0 mm; 62,000 shots per cartridge
- Optional RF microneedling
- MNRF handpiece; adjustable needle depth from 0.5 to 3.5 mm; 0.22 mm insulated microcrystal needle with a 0.3 to 0.5 mm exposed tip
- Lipo HIFU cartridges
- 8.0 and 13.0 mm
- Intimate-care probes
- 3.0 and 4.5 mm
Certified Quality for Global Markets
FAQ
What does 4D mean in a 4D HIFU machine?
For FotroHIFU Max, 4D refers to the multi-line HIFU workflow, with up to 12 treatment lines per shot. Since “4D” is not a universal technical standard, compare the actual handpieces, cartridge depths, shot capacity and energy controls.
How does a 4D HIFU machine work?
Interchangeable HIFU cartridges set a fixed focal depth. The standard multi-line handpiece delivers up to 12 focused ultrasound lines per shot, while the operator selects the cartridge, energy setting and protocol for the planned area.
What comes standard with the FotroHIFU Max 4D HIFU machine?
The standard configuration includes the 4D multi-line HIFU handpiece with three HIFU cartridges. The exact three depths should be listed in the quotation because the machine supports a wider range of depth options.
Which handpieces can be added to the FotroHIFU Max 4D HIFU machine?
Vmax and fractional RF microneedling are optional add-ons. Lipo HIFU and the 360° intimate-care handpiece are selected according to the project, so every included handpiece and cartridge should be listed in the quotation.
How is a 4D HIFU machine different from a 3D HIFU machine?
The D labels are not standardized across manufacturers, so the name alone does not define performance. Compare the actual line output, handpieces, cartridge depths, energy controls, shot capacity and support included with each machine.
Can this 4D HIFU machine support face and body applications?
Yes, depending on the selected handpieces and cartridges. The standard HIFU handpiece supports professional face and body work. The Lipo HIFU handpiece adds 8.0 mm and 13.0 mm body cartridges, while Vmax is an optional facial handpiece.
How long do the 4D HIFU machine cartridges last?
The listed capacity is 20,000 shots for each HIFU cartridge and 62,000 shots for each Vmax cartridge. Actual replacement timing depends on the shots used for each service and the clinic’s treatment volume.
How much does a 4D HIFU machine cost?
The price depends on the selected handpieces, cartridge package, branding requirements, shipping destination and support scope. An itemized quotation keeps the standard package and optional components clear.
Are training and OEM services available for this 4D HIFU machine?
Project-specific remote training and OEM or ODM options can be discussed during configuration. The confirmed scope should be stated in the quotation or purchase agreement.
